Retro Look Stealth Transmission Using Modern Internals for JC10 & Long Arm Conversions

JCS-0142

Black | Ivory | Natural

Product Overview:

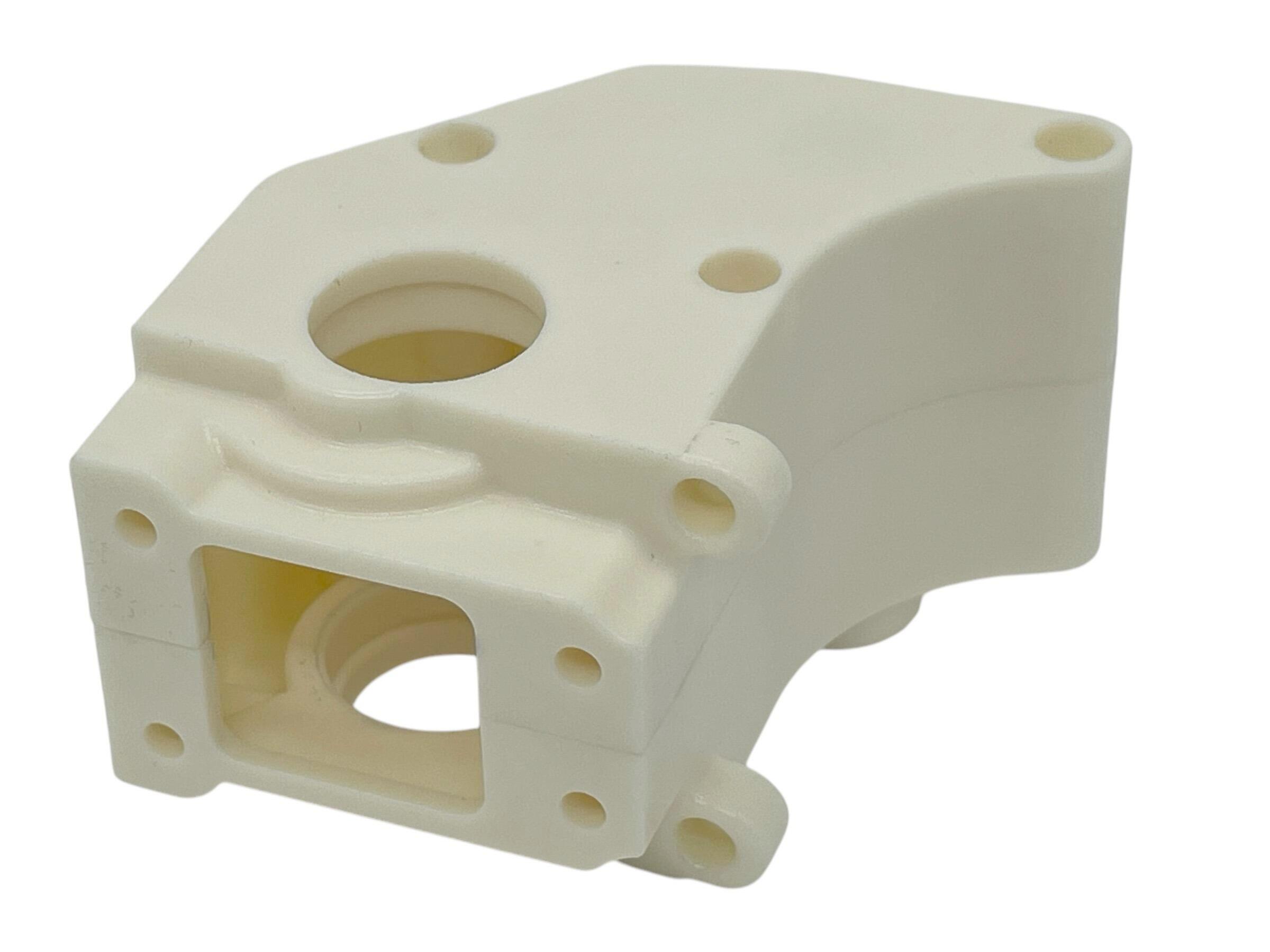

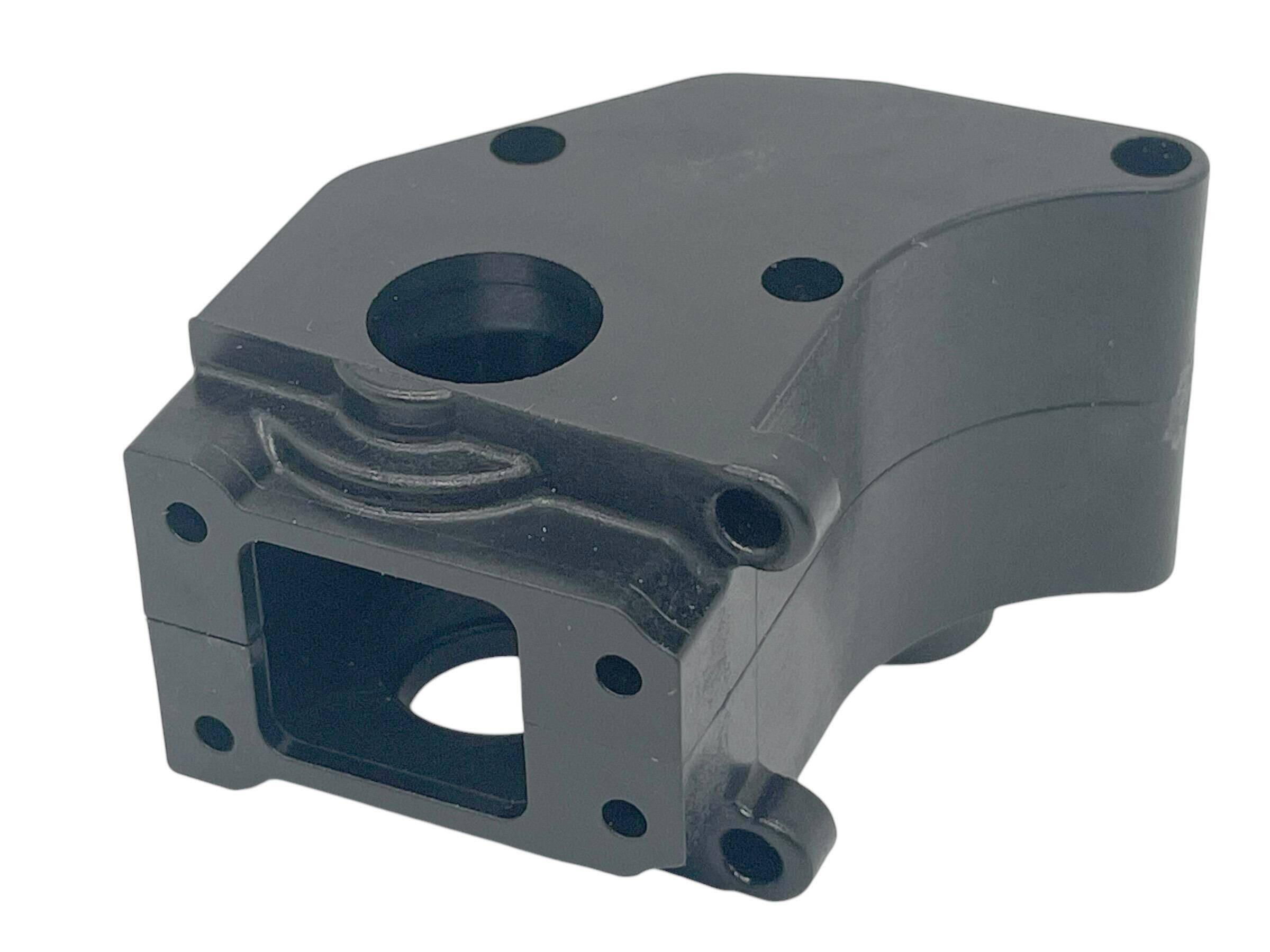

Welcome to our funky concept where old meets new. This retro looking transmission case is designed to have the same narrow footprint as the world famous Stealth transmission whilst incorporating updated differential and transmission components suitable for todays racing needs. Suitable for most long arm conversions where the chassis has been modified to have a narrower rear pivot and longer arms.

By pairing this retro looking Stealth case with modern internals, you're looking at the perfect blend of durability, precision, and confidence, as the new parts can offer increased durability and reliability. JC Racing don't like to copy but offer alternative choices for your vintage vehicles, something we are proud of.

Key Features & Specifications:

Designed for the JC10 & RC10 Long Arm conversions
Retro style and easy to clean
Incorporates both sets of holes for transmission brace mounting
Internal gear ratio 2.6/1
Ball or gear differential can be used
Precision nylon injection moulded

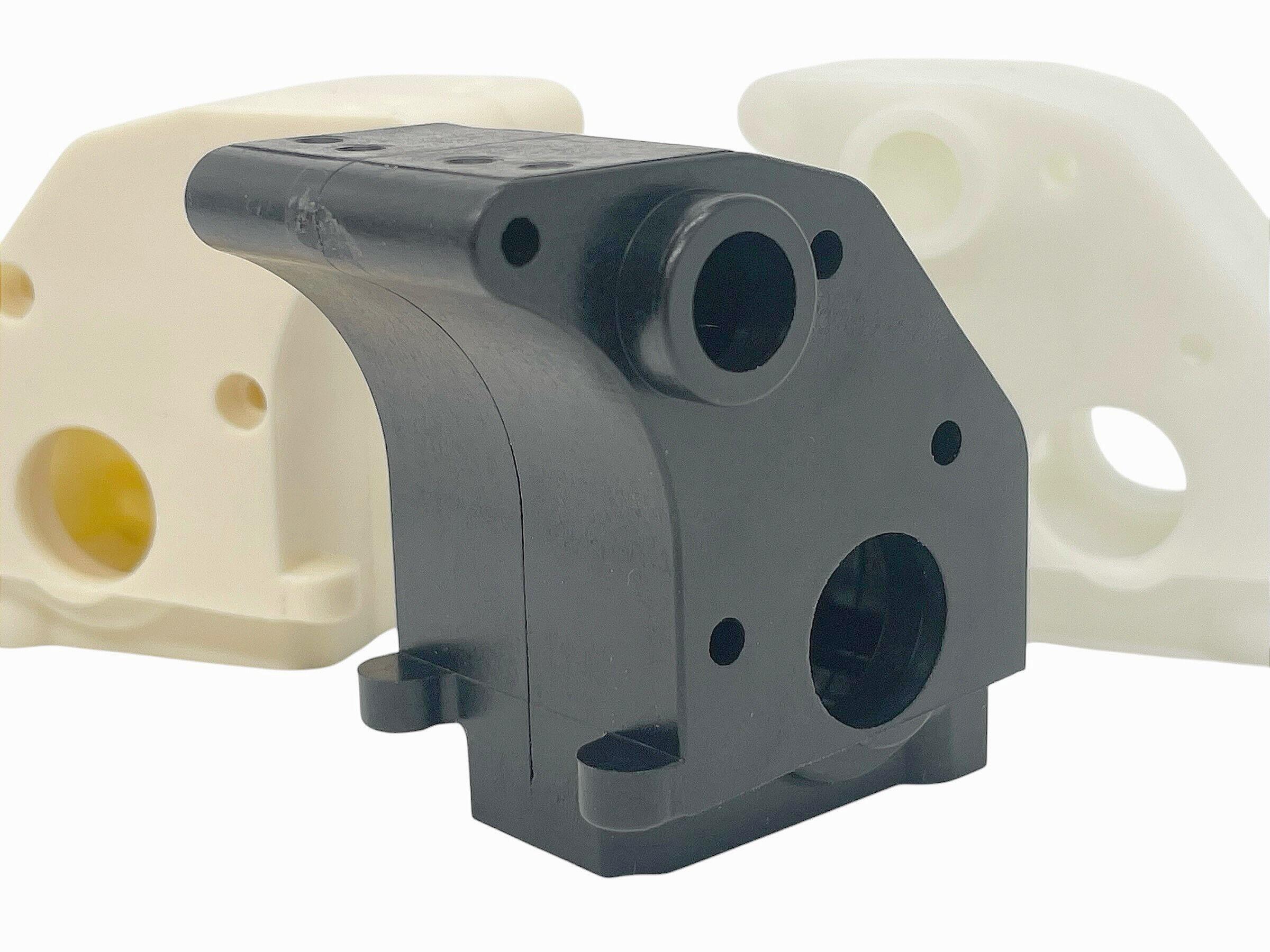

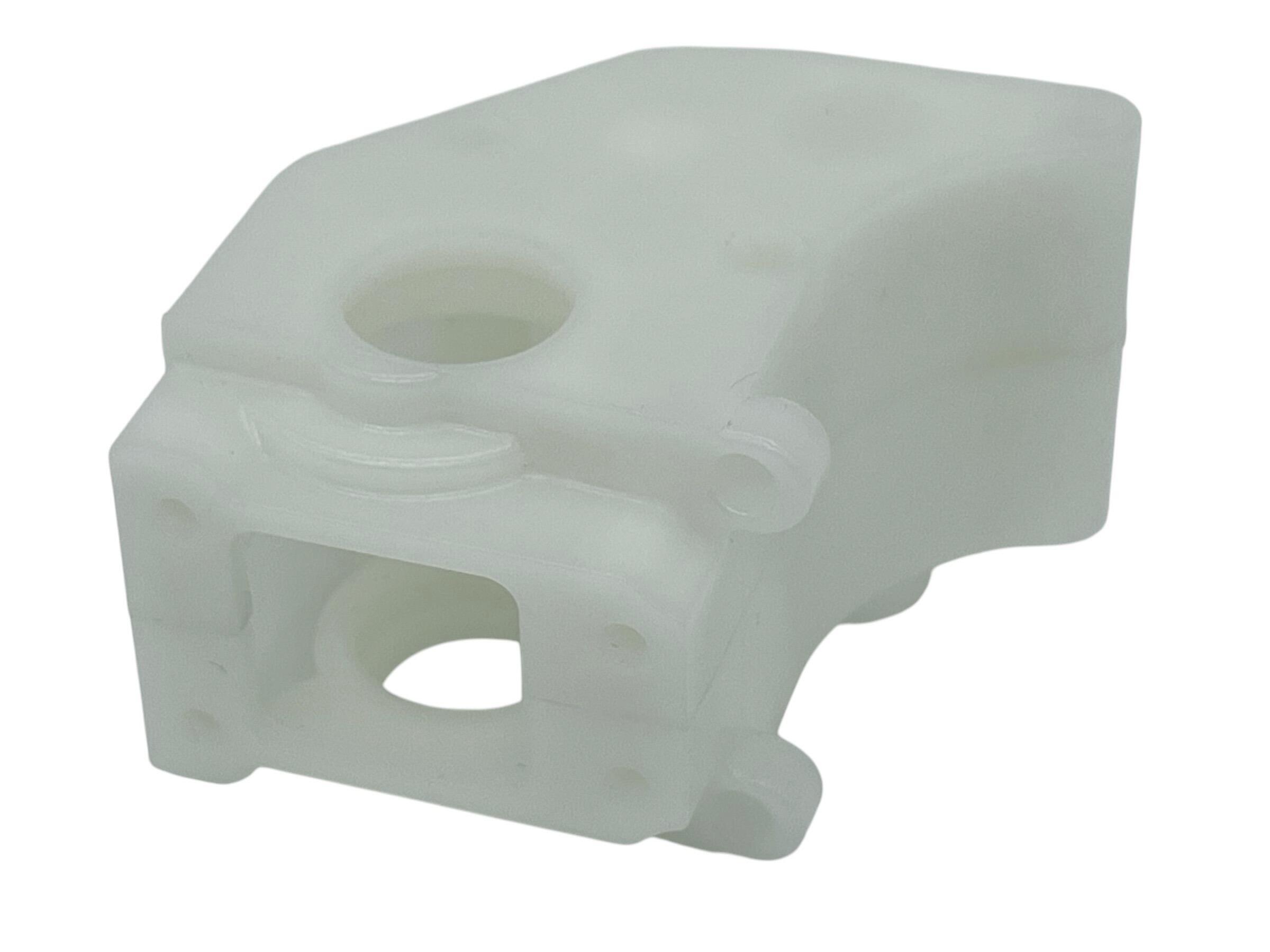

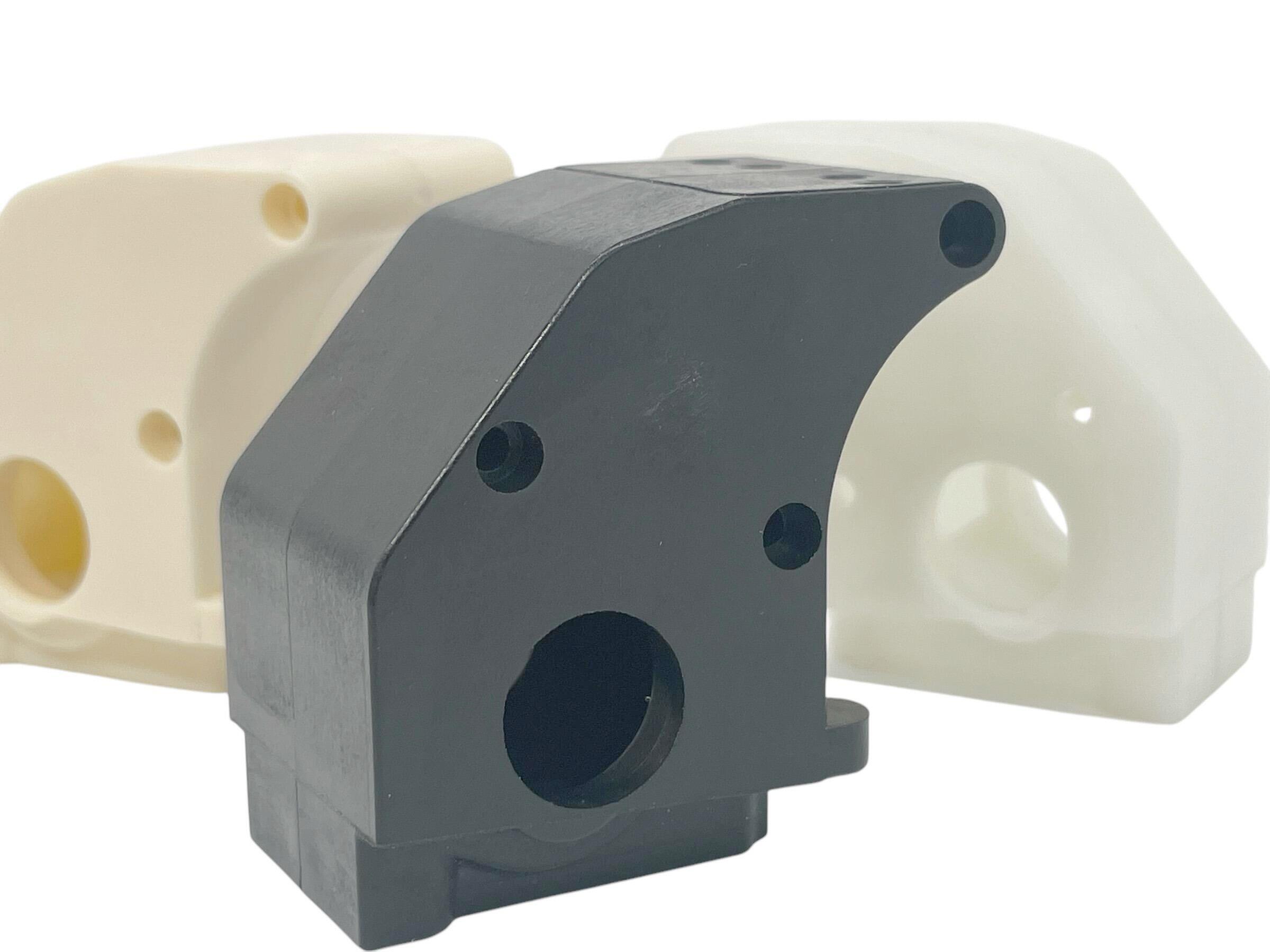

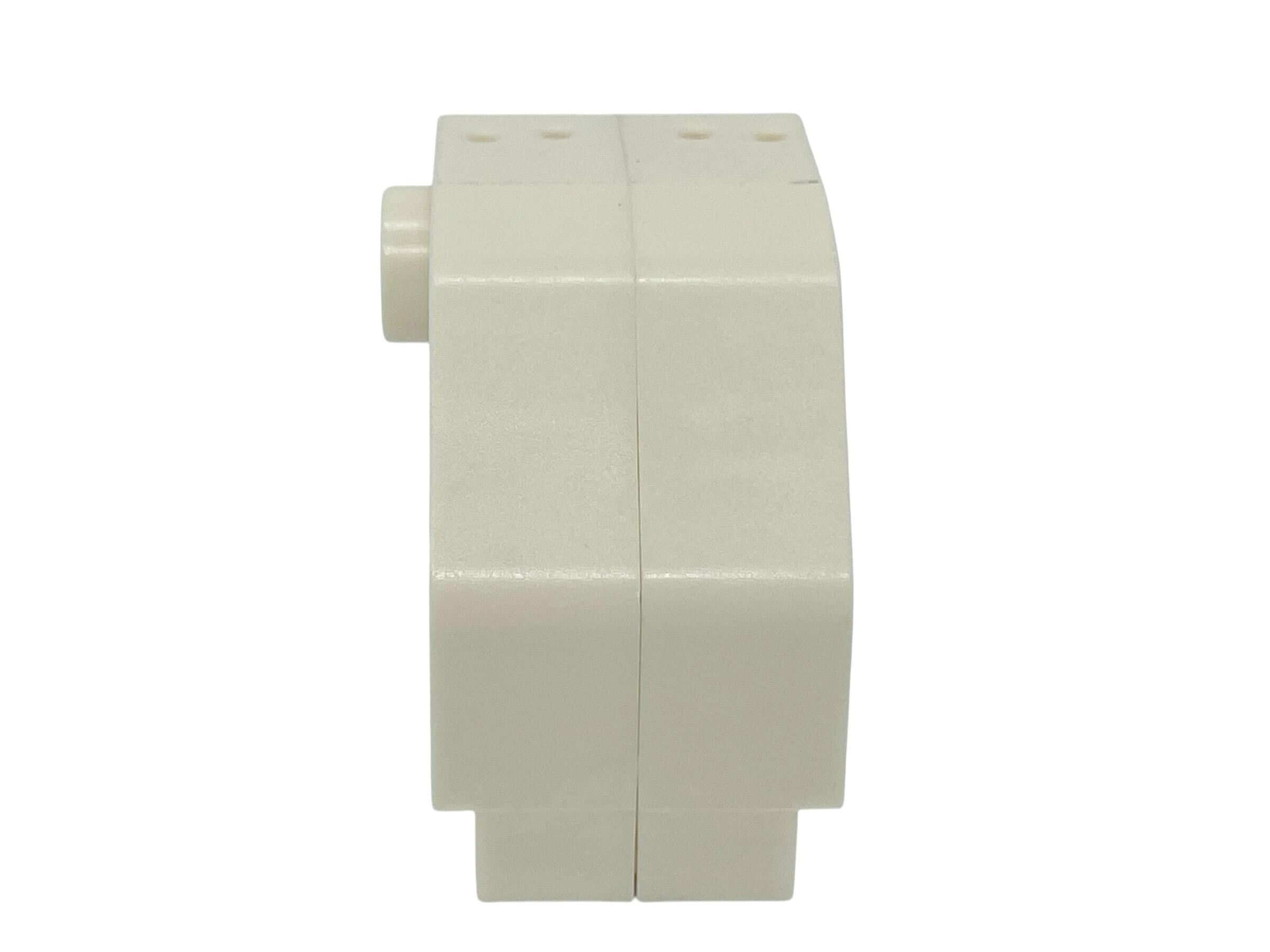

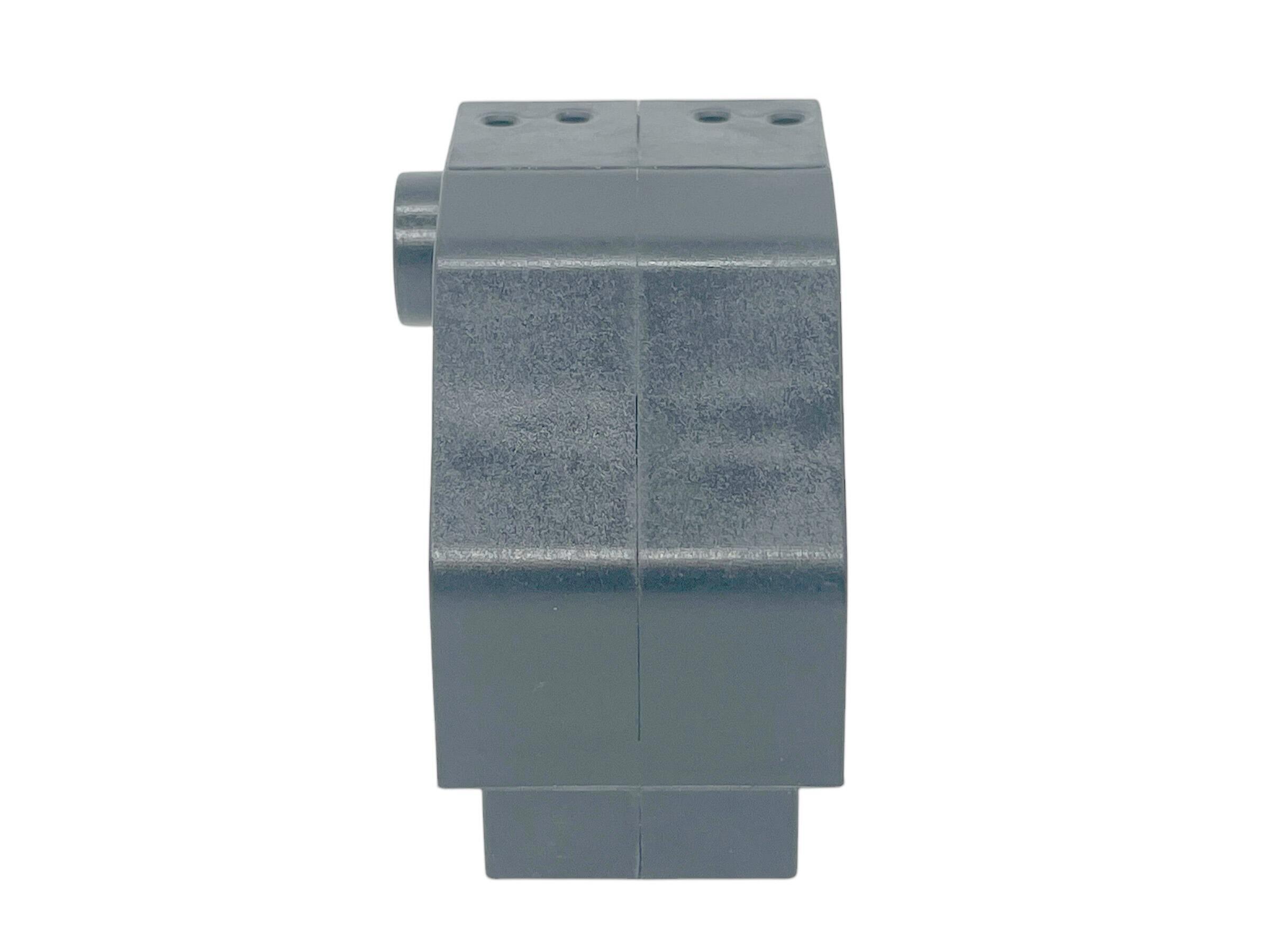

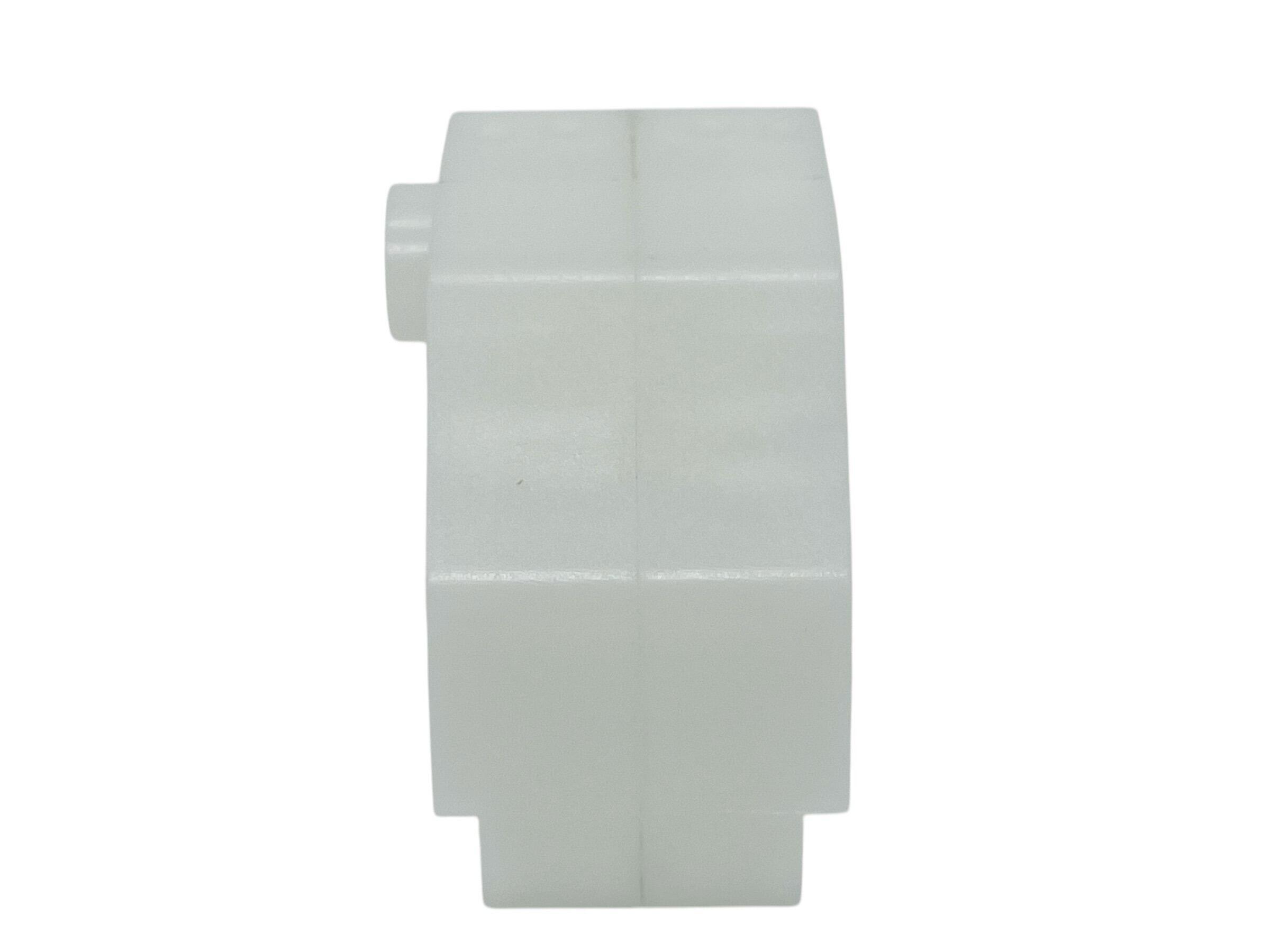

Available: Black | Ivory | Natural

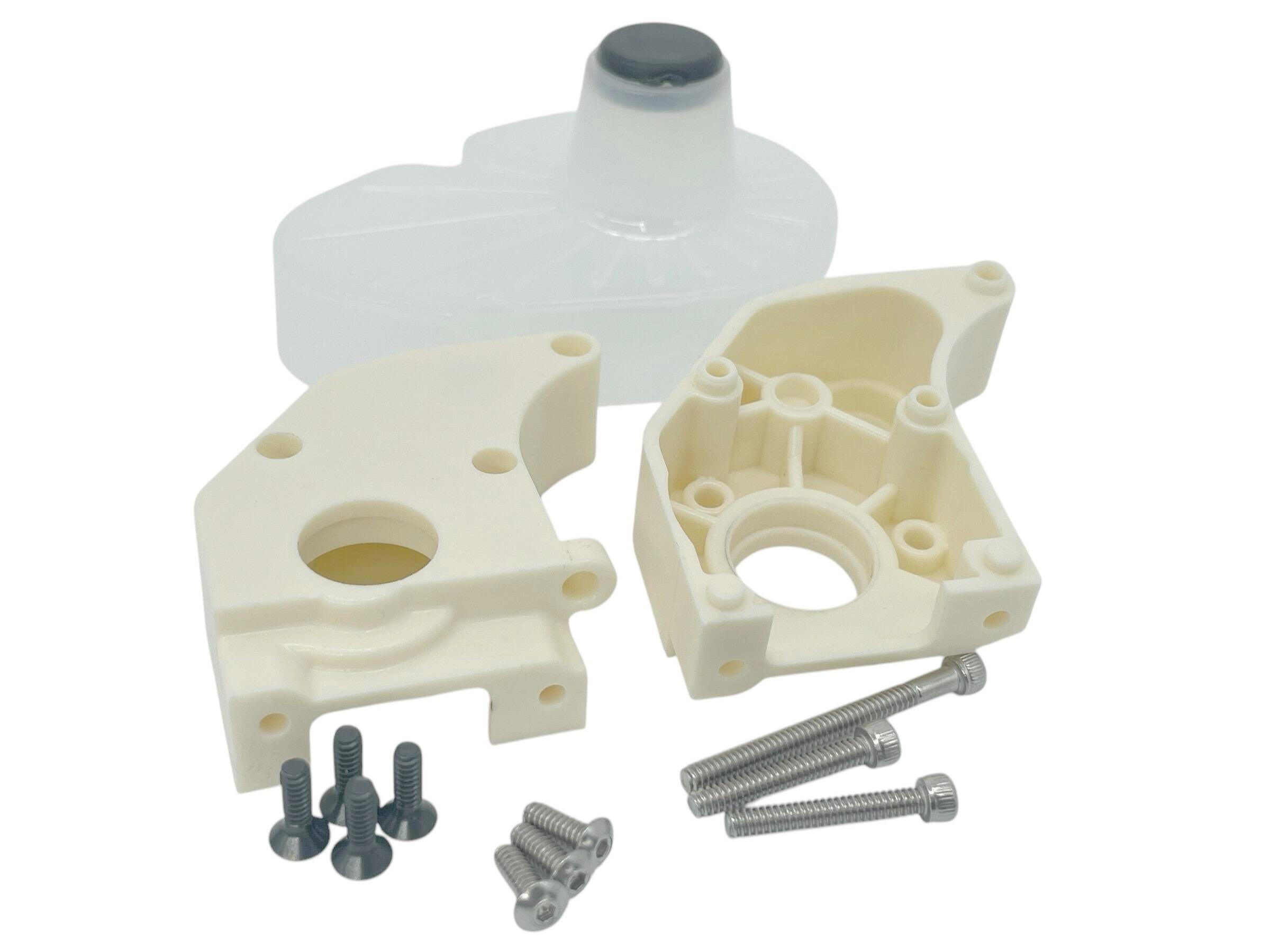

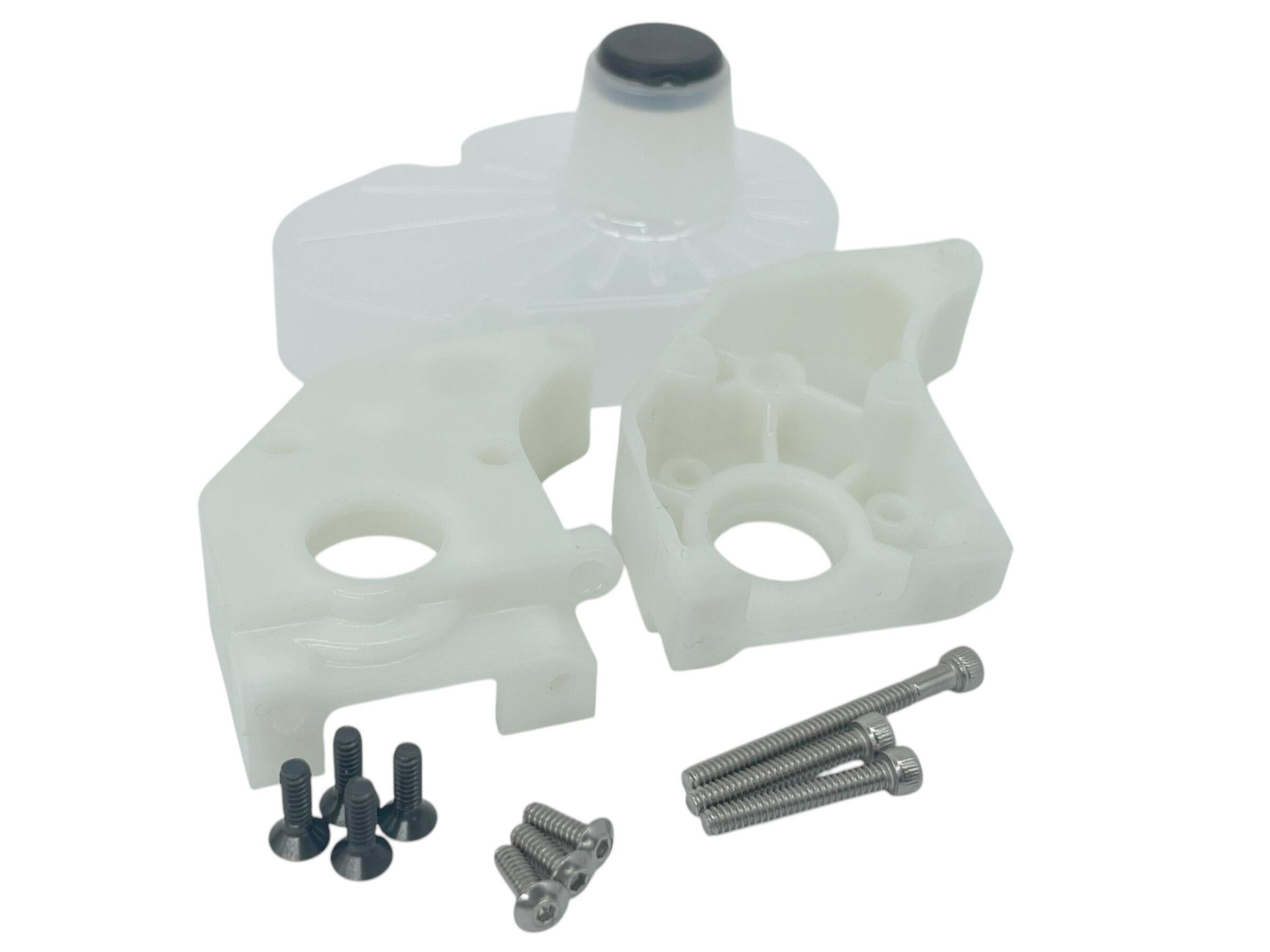

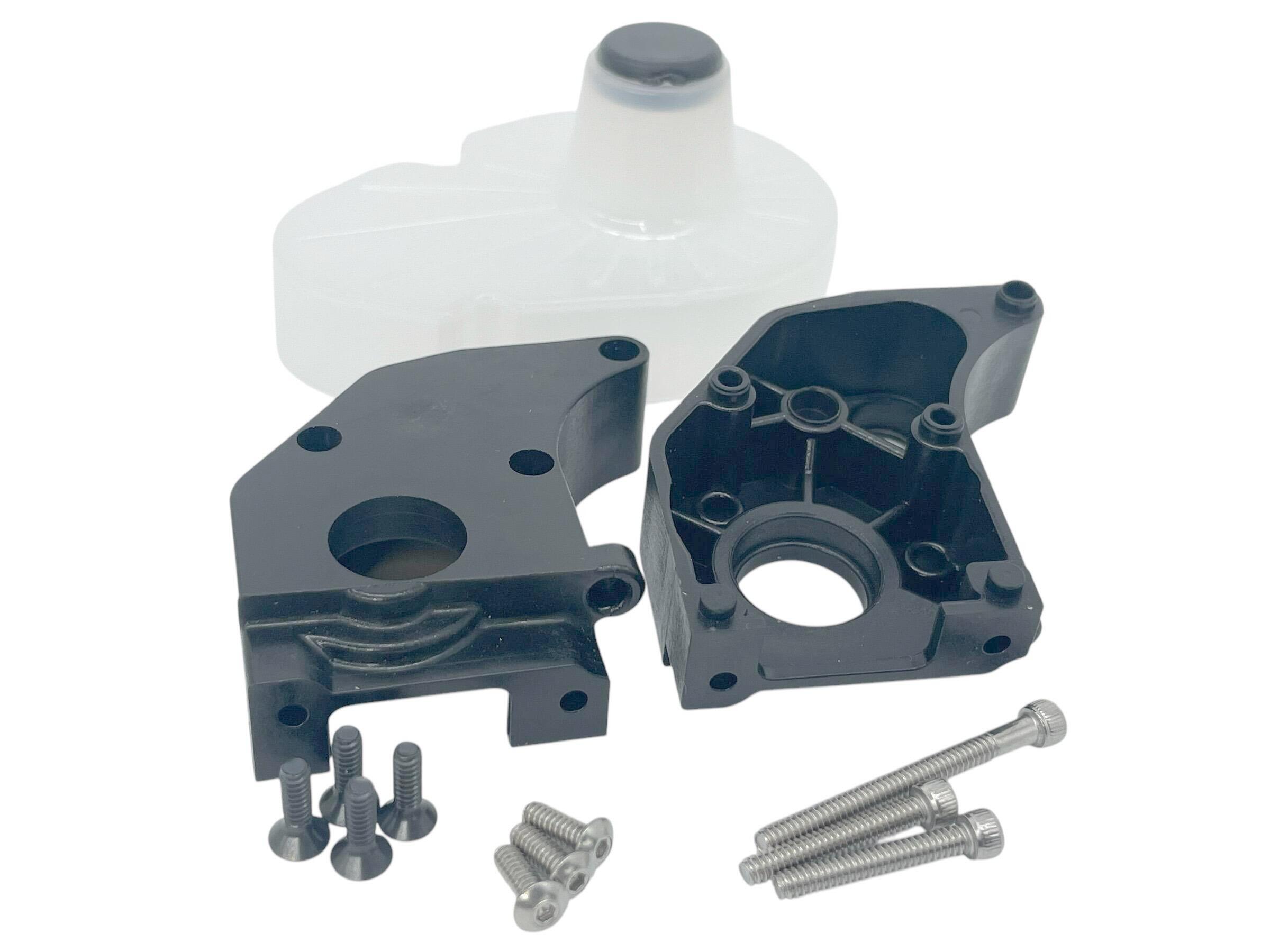

Options: Case & Screws | Case Screw & Cover

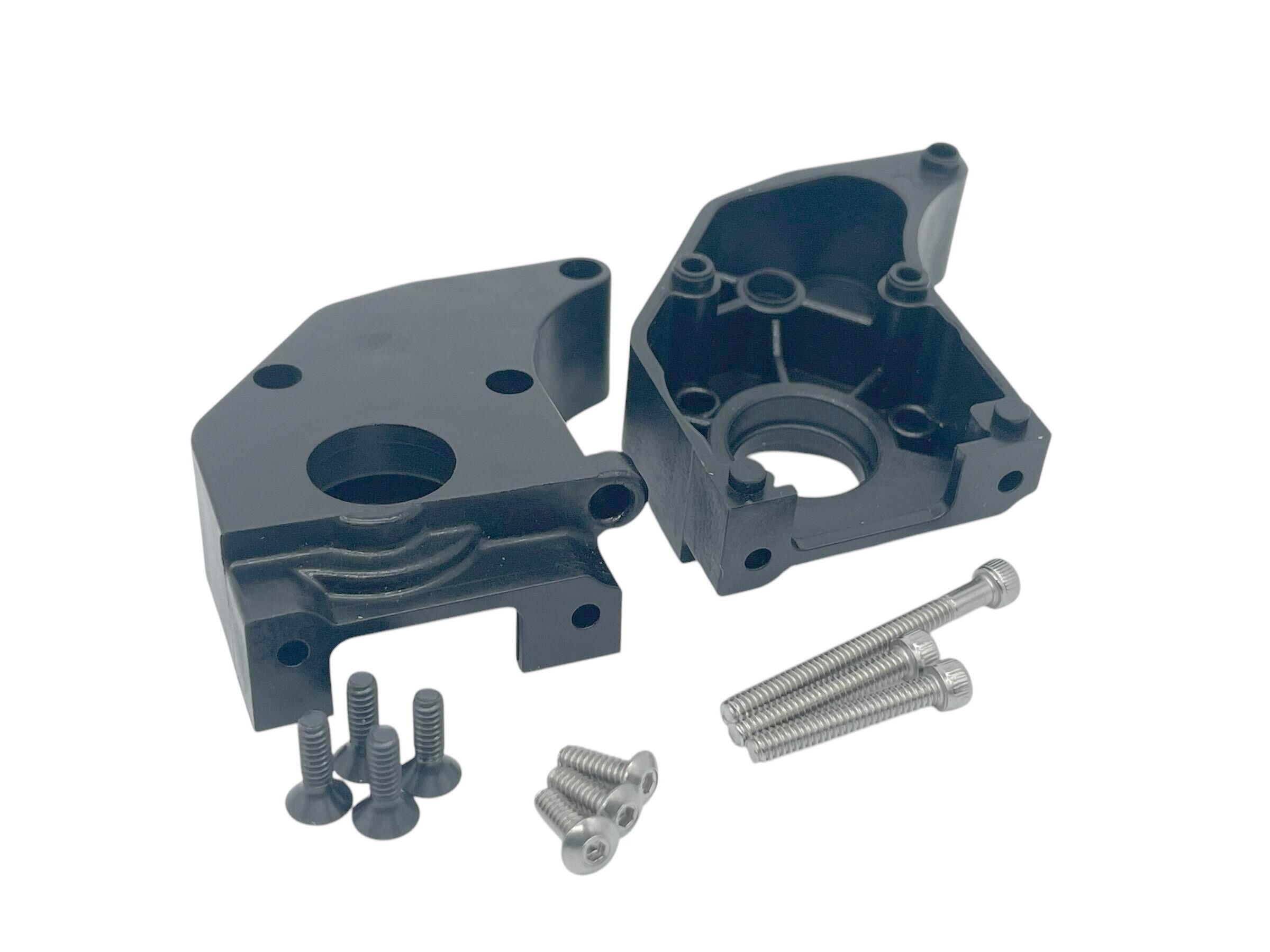

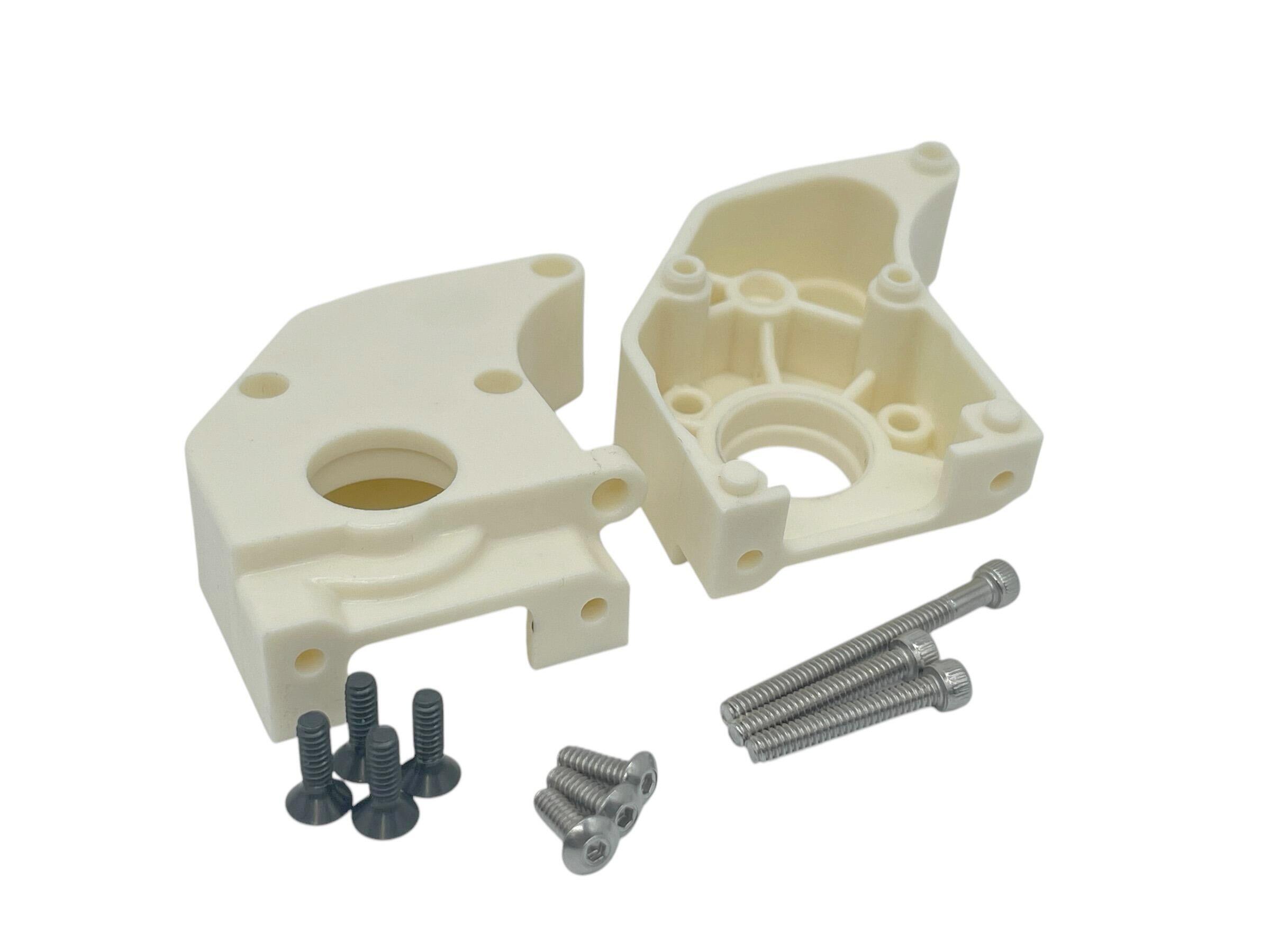

Included:

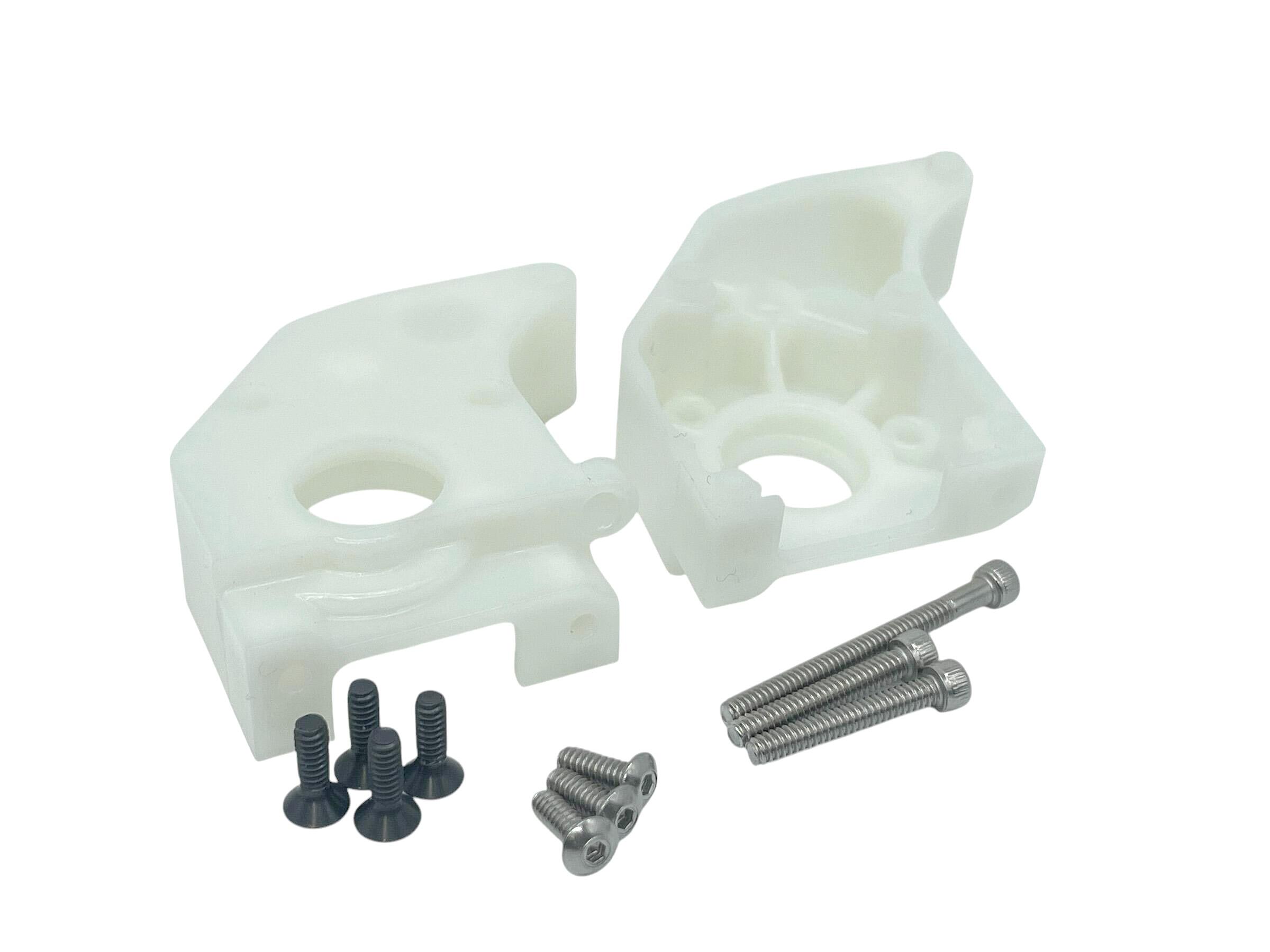

Gearbox Screws & Case:

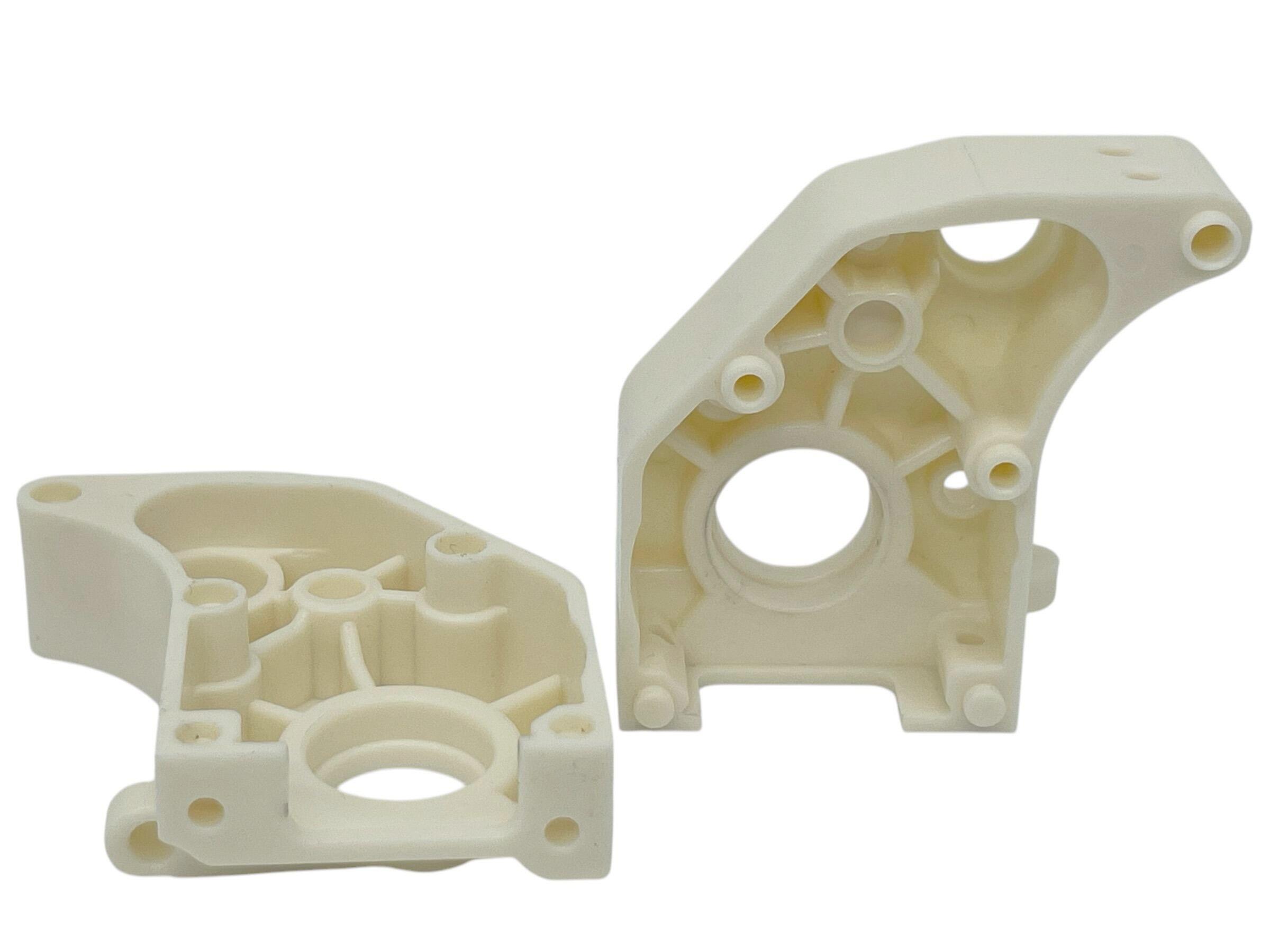

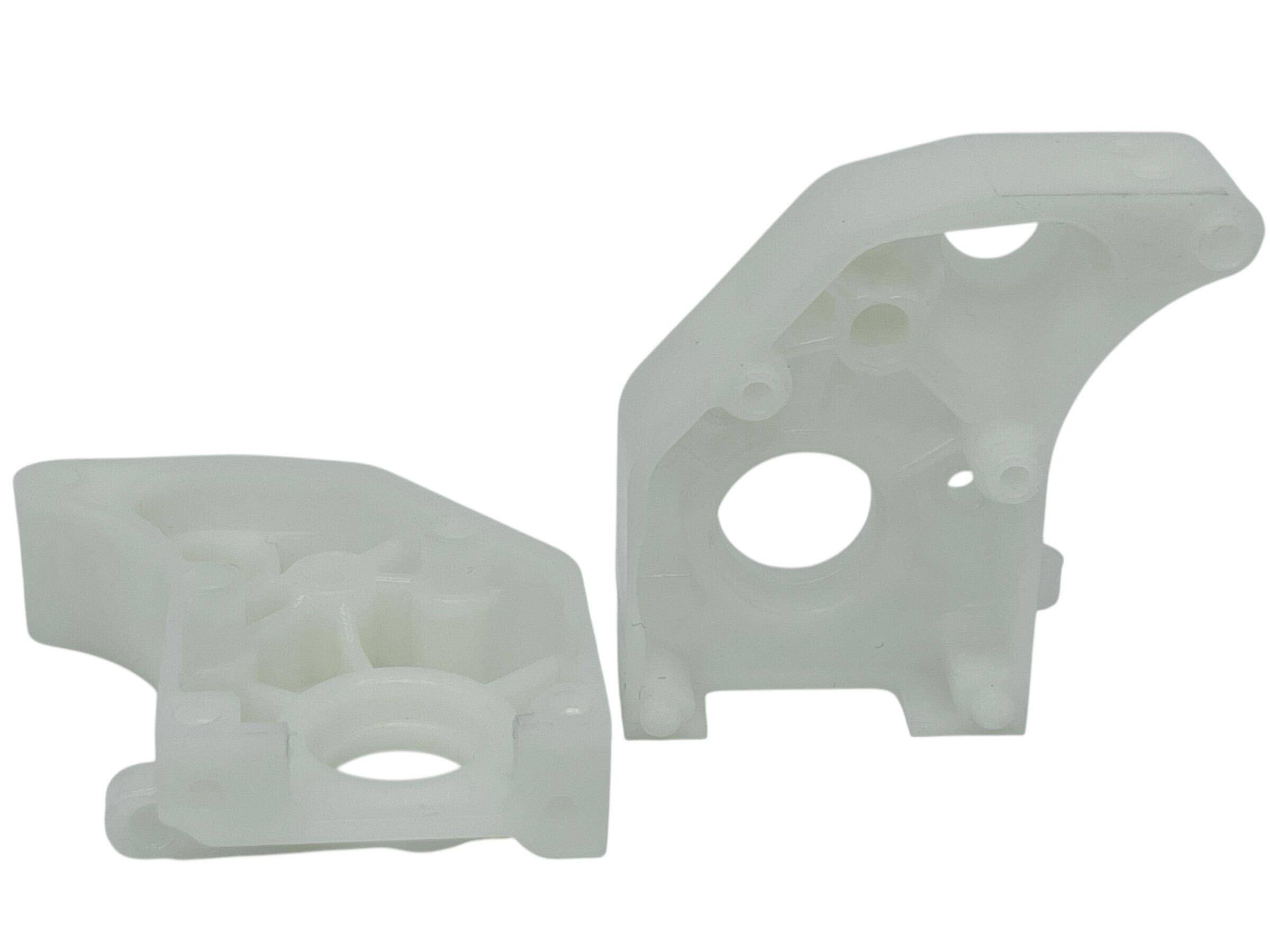

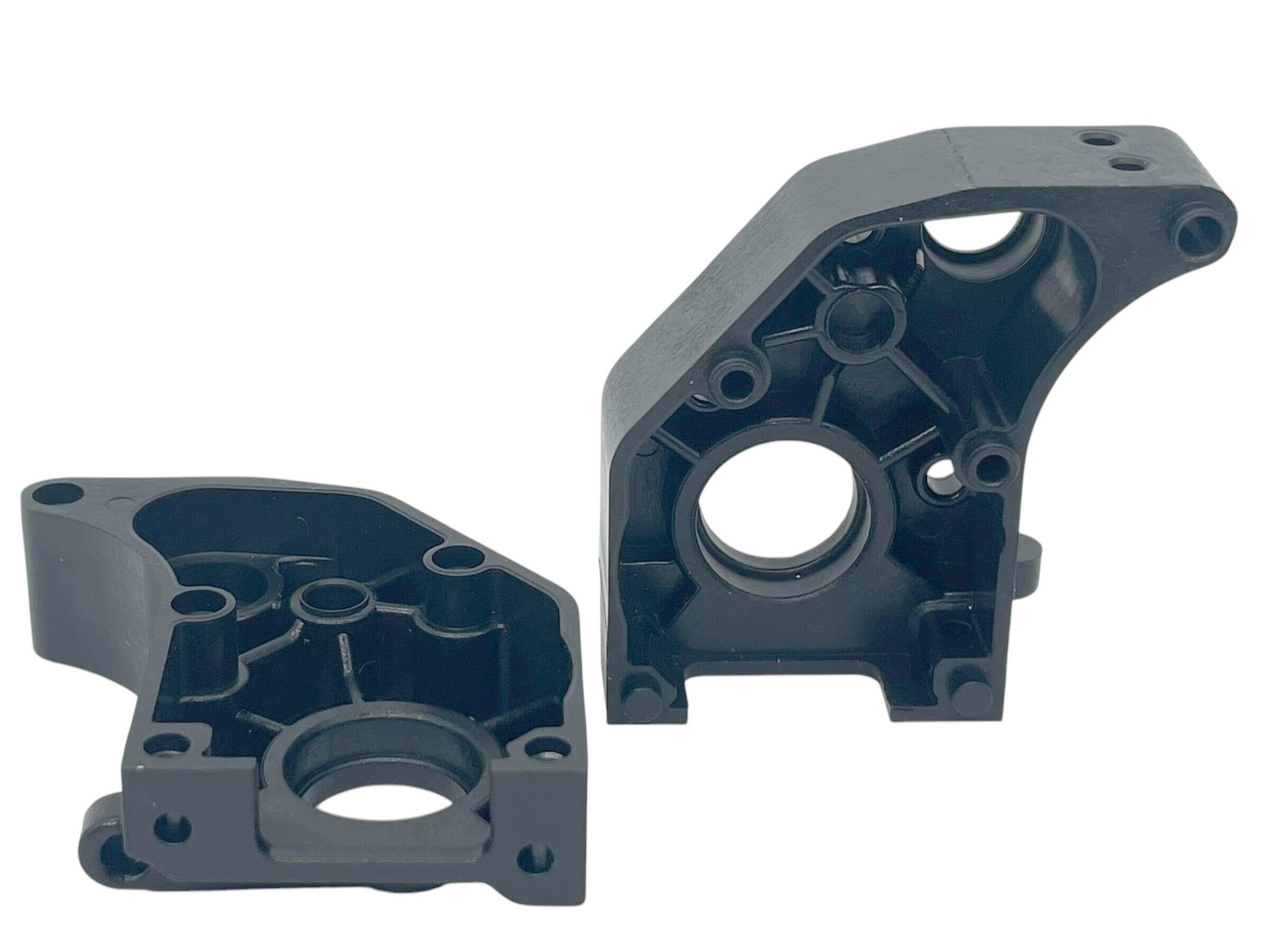

LHS Gearbox Case
RHS Gearbox Case
4 x 4/40x 3/8" Countersunk (Gearbox to chassis)
2 x 4/40x 3/4" Socket Cap Head (External gearbox screw)
1 x 4/40 x 1 1/4" Socket Cap Head (External gearbox screw)
3x 4/40 x 5/16" Button Head (Motor plate to gearbox half)

Team Associated Items required to complete the transmission using either a Ball or Gear differential

GEAR DIFF PARTS NEEDED	BALL DIFF PARTS NEEDED
B6 gear diff P/N - 91786	B6 ball diff P/N - 91992
Idler shaft P/N - 91132	Idler shaft P/N - 91132
Idler 26T P/N - 91717	Idler 26T P/N - 91717
DR10 top shaft P/N - 91606	DR10 top shaft P/N - 91606
Slipper hubs P/N - 7485	Slipper hubs P/N - 7485
Slipper pads P/N - 9611	Slipper pads P/N - 9611
Spring adaptor P/N - 91423	Spring adaptor P/N - 91423
Spring P/N - 9739	Spring P/N - 7939
4 off 5x10x4 bearings	4 off 5x10 bearings
2 off 10x15x4 bearings	2 off 10x15 bearings
Spur gears for both - 87T - P/N - 9654 or 84T P/N - 9653 or 81T P/N - 9651	Spur gears for both - 87T - P/N - 9654 or 84T P/N - 9653 or 81T P/N - 9651
