JC10/ RC10 CVD +2mm (2)

JC10/ RC10 CVD +2mm (2)

#JCS-0101

Product overview:

JC Racing Products Upgraded CVD's are a must have for your vintage race vehicle. Designed specifically for the racer with improved length to allow more droop and tun-ability without the frustration of loosing drive shafts or chipping drive cups. Originally designed for the JC Racing RC 10 Long Arm conversion parts, these CVA's work with all variations of the RC10.

RC10 CVD +2mm Information

• 3/16" axle with M4 thread
• 2mm longer bone than original Team Associated parts. Inner bearing face to centre of dog-bone pin = 63.50mm
• Standard sized 6mm ball with a 2.45mm pin
• Fits all RC10, RC10 re-release and JC modern transmission outdrives using B6 internals
• Easy cleaning and maintenance with removable sleeve
• Precision machines high quality steel and 7075 aluminium for the sleeve
• Finish - black
• Sold as a pair - 2pc

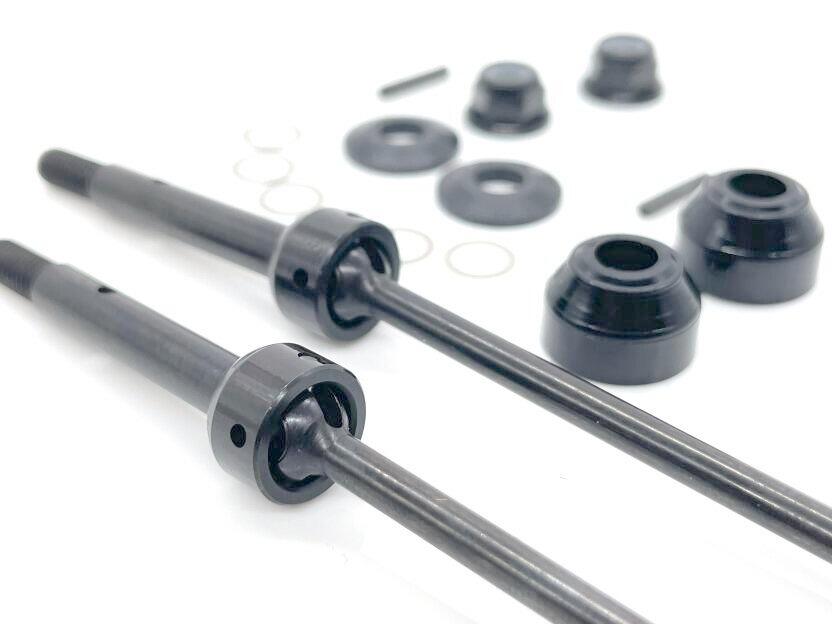

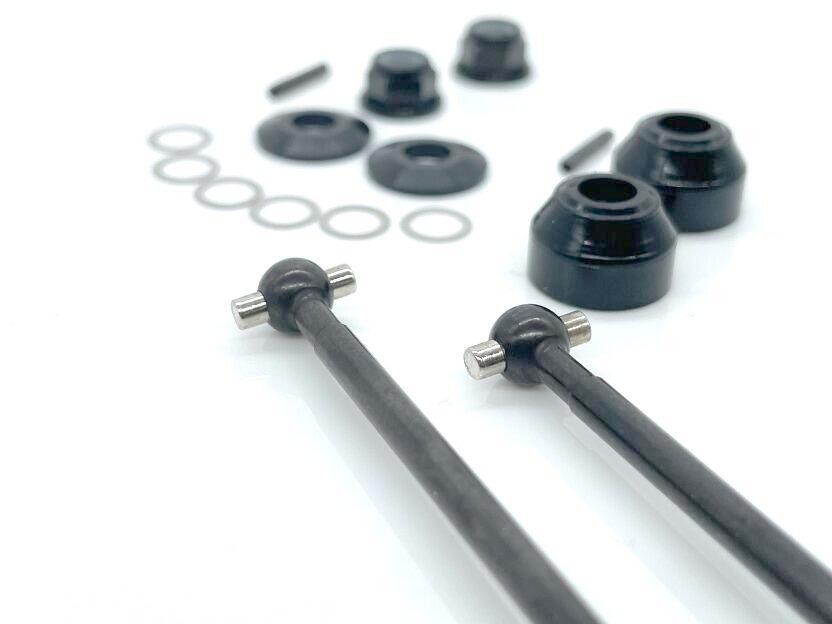

Included:

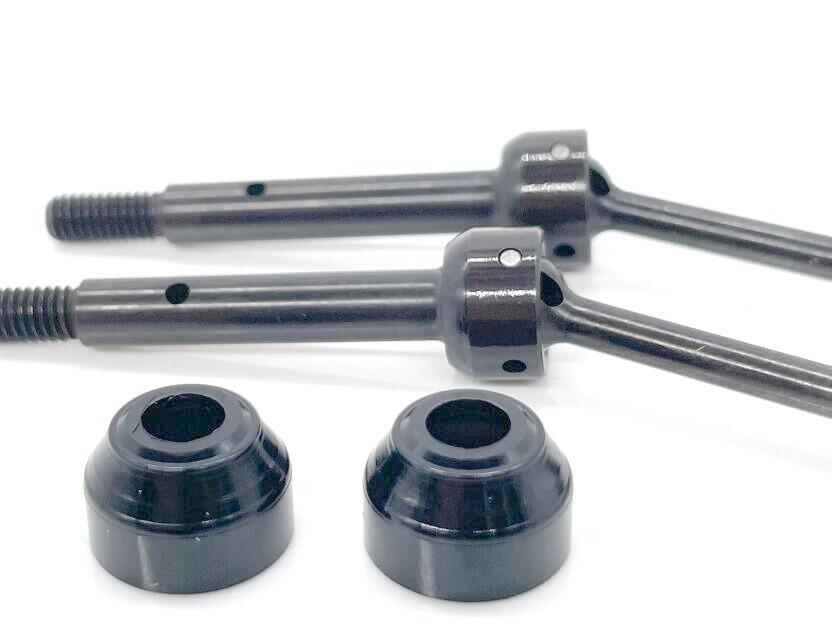

• 2pc +2mm CVD 3/16" axle diameter, precision machined steel bones and axles.
• 2pc 7075 anodised protective CVD sleeve. Black
• 2pc Roll/drive pins
• 2pcs 7075 aluminium anodised (black) tapered washer
• 6pc x 3/16" axles shims included. (OD 0.250", ID 0.190", thickness 0.008")
