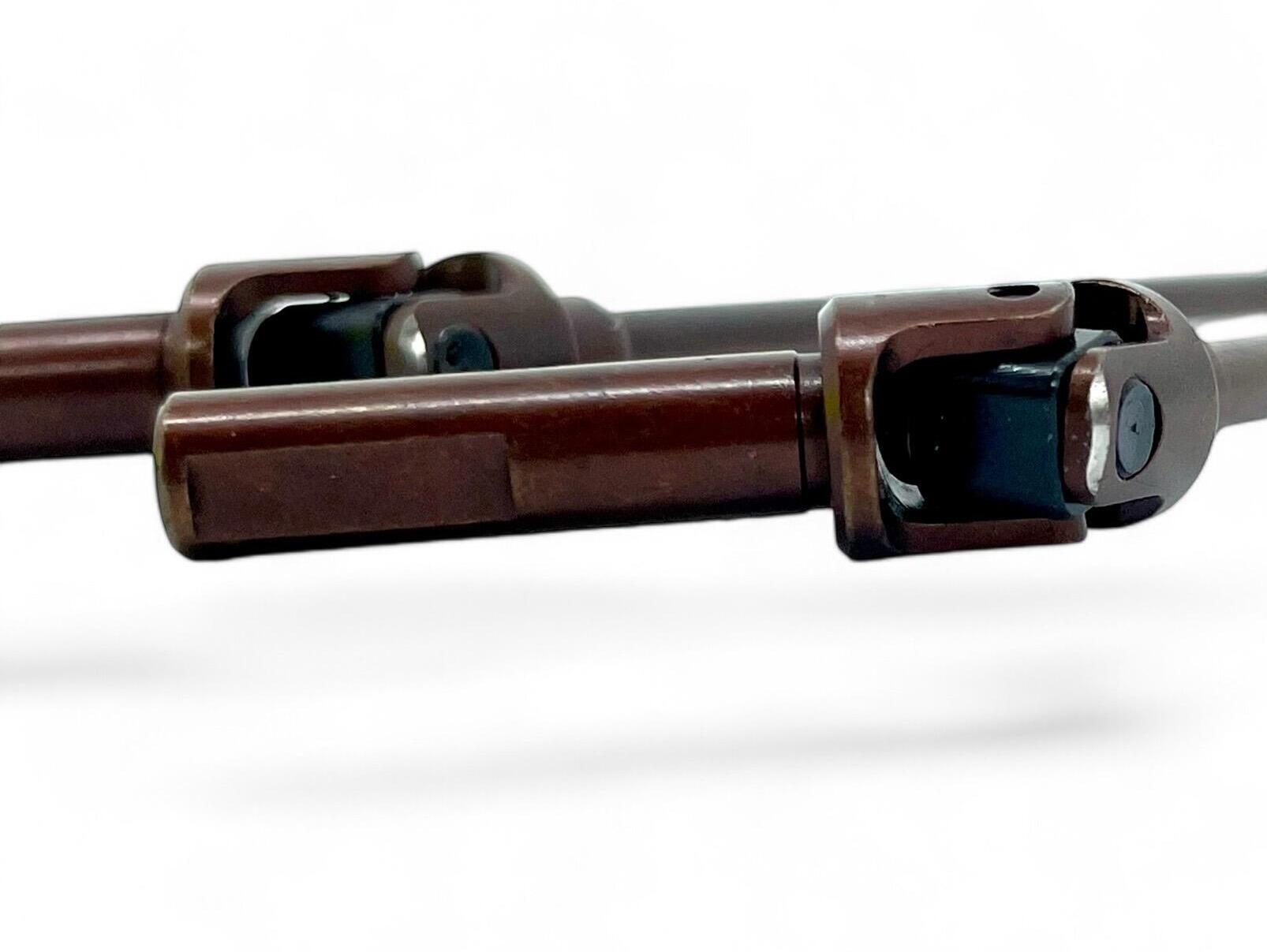

870C/YZ10 RERE ONLY Long Front Universal Joint

870C/YZ10 RERE ONLY Long Front Universal Joint (2)

#JCS- 0138

Part Overview:

The longer front end Universal joint is specifically designed for the RE-RE Yokomo 870C and Team Associated YZ10 vehicles, offering enhanced performance when utilising the outer hole on the front arm rather than the standard inner hole. This revised longer drive shaft effectively maximises track width for both models. Allowing increased droop settings and increased steering throw. However, it's important to note that these products are exclusively compatible with the re-released versions due to a change in ball diameter associated with the new gear differential implemented in these iterations.

Key Features and Specification:

• Revised longer length drive shaft for the wider front end setting on the Yokomo 870C and YZ10
• Smaller 5.8mm ball to fit the new gear diff with 6mm outdrives and 2mm pin
• Allows for increased droop and steering throw
• Cool Copper Coating
• Precision machined hardened steel
• Tradition machined flat axle for fixing for the iconic Yokomo wheel hubs
• 2mm diameter drive pin
• Revised ball diameter for use with the new Re Re gear differentials. Ball dia 5.8mm to fit the 6mm outdrives
• Pin-to-pin bone length 69.5mm
• Total length 97.5mm
• Sold as a pair - 2pcs

Fits:

• Yokomo 870C RERE ONLY
• Team Associated YZ10 RERE ONLY

Included:

• 2pc Universal drive shaft
