    JRX2 Captured Hinge Pin Set (10pc)

    Part No: JCS-0166

    Product Overview:

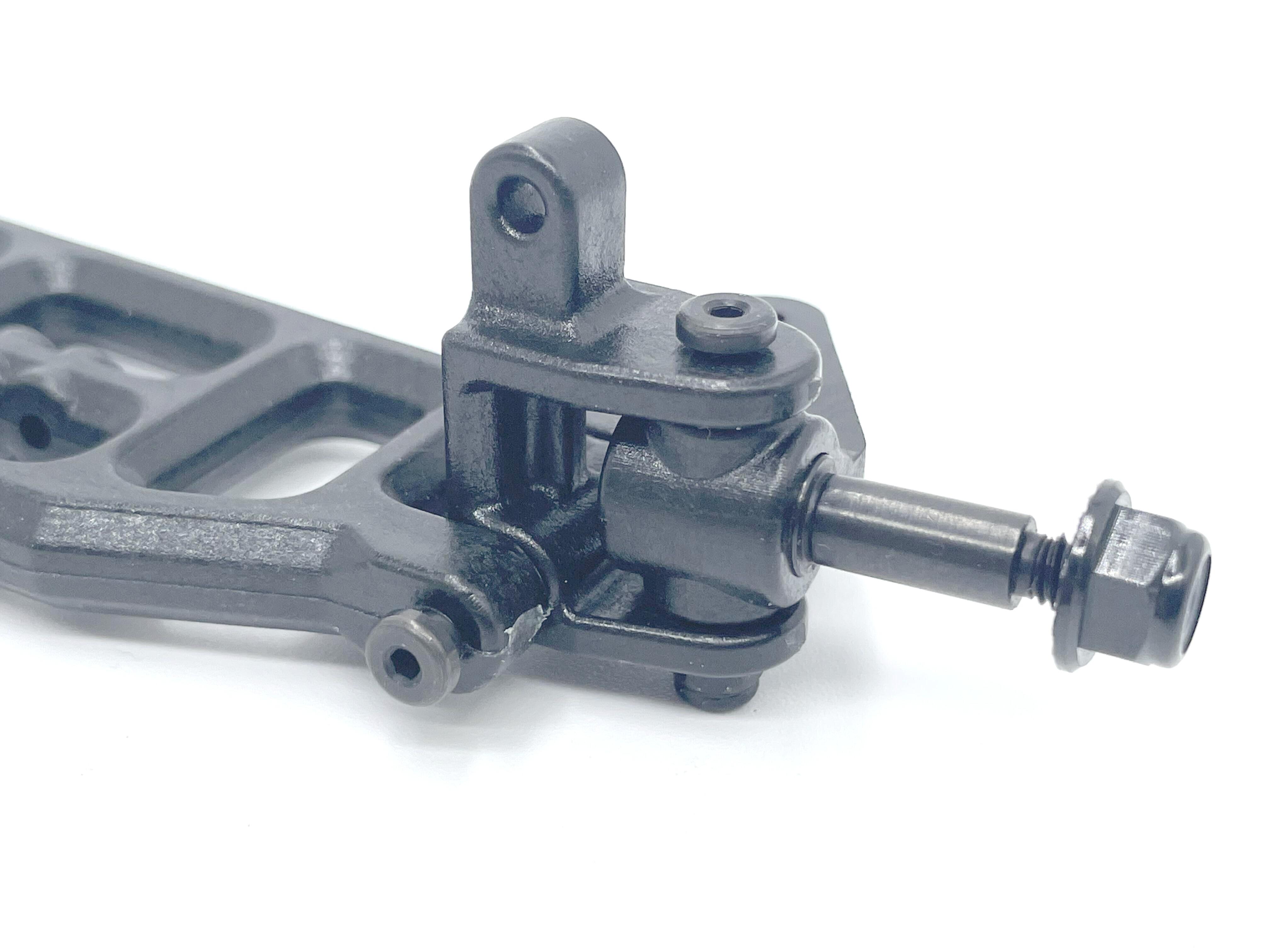

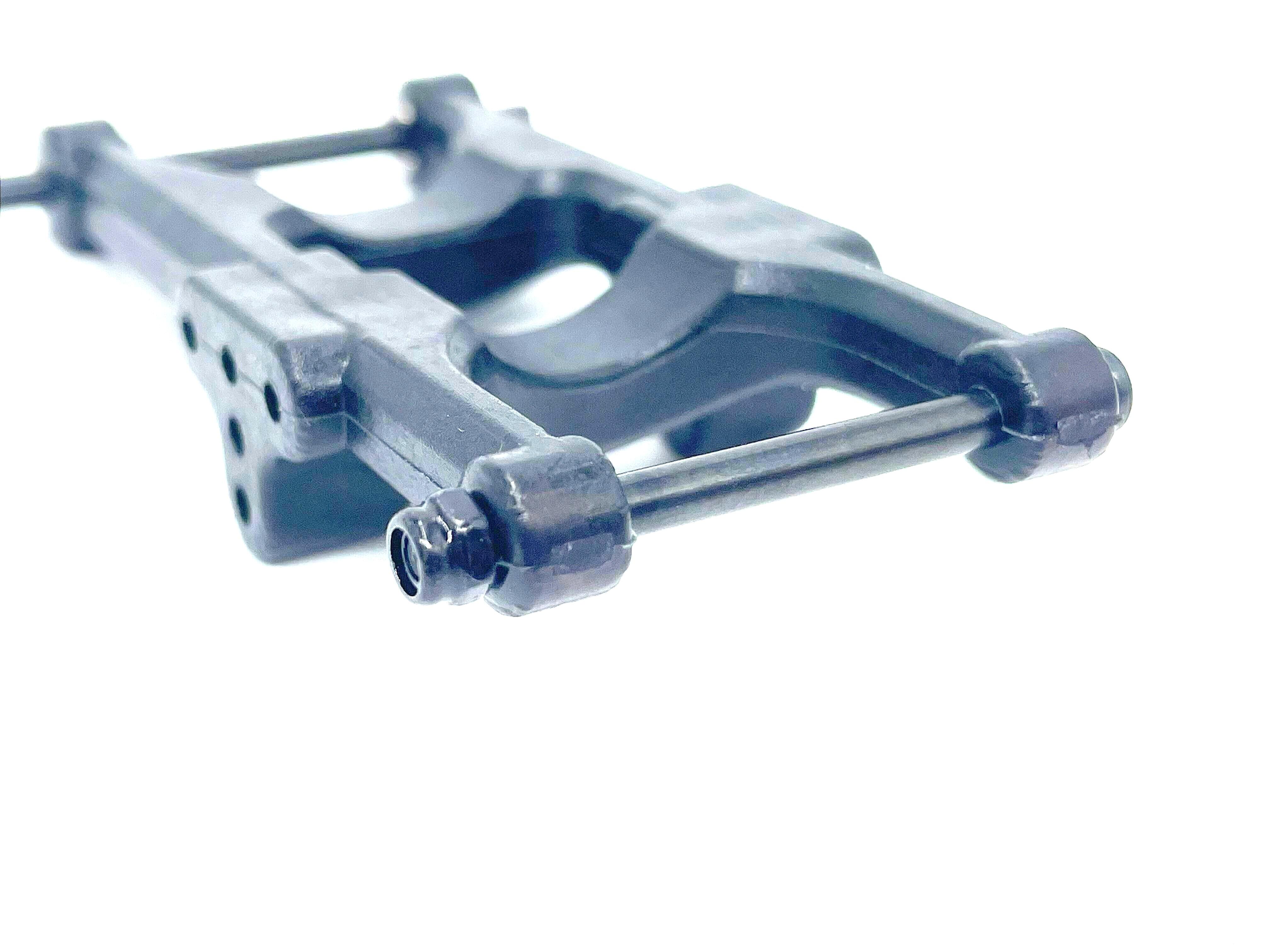

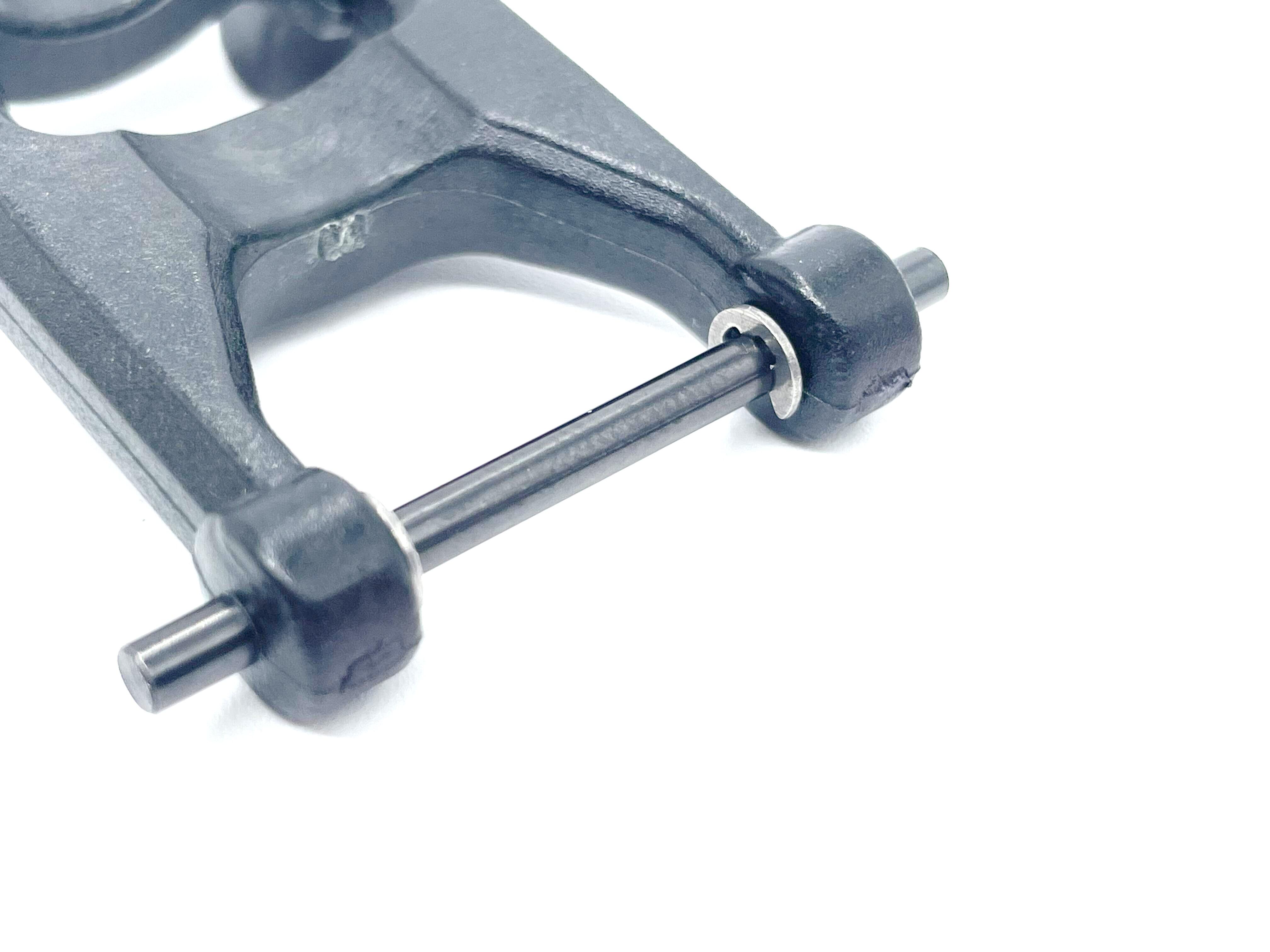

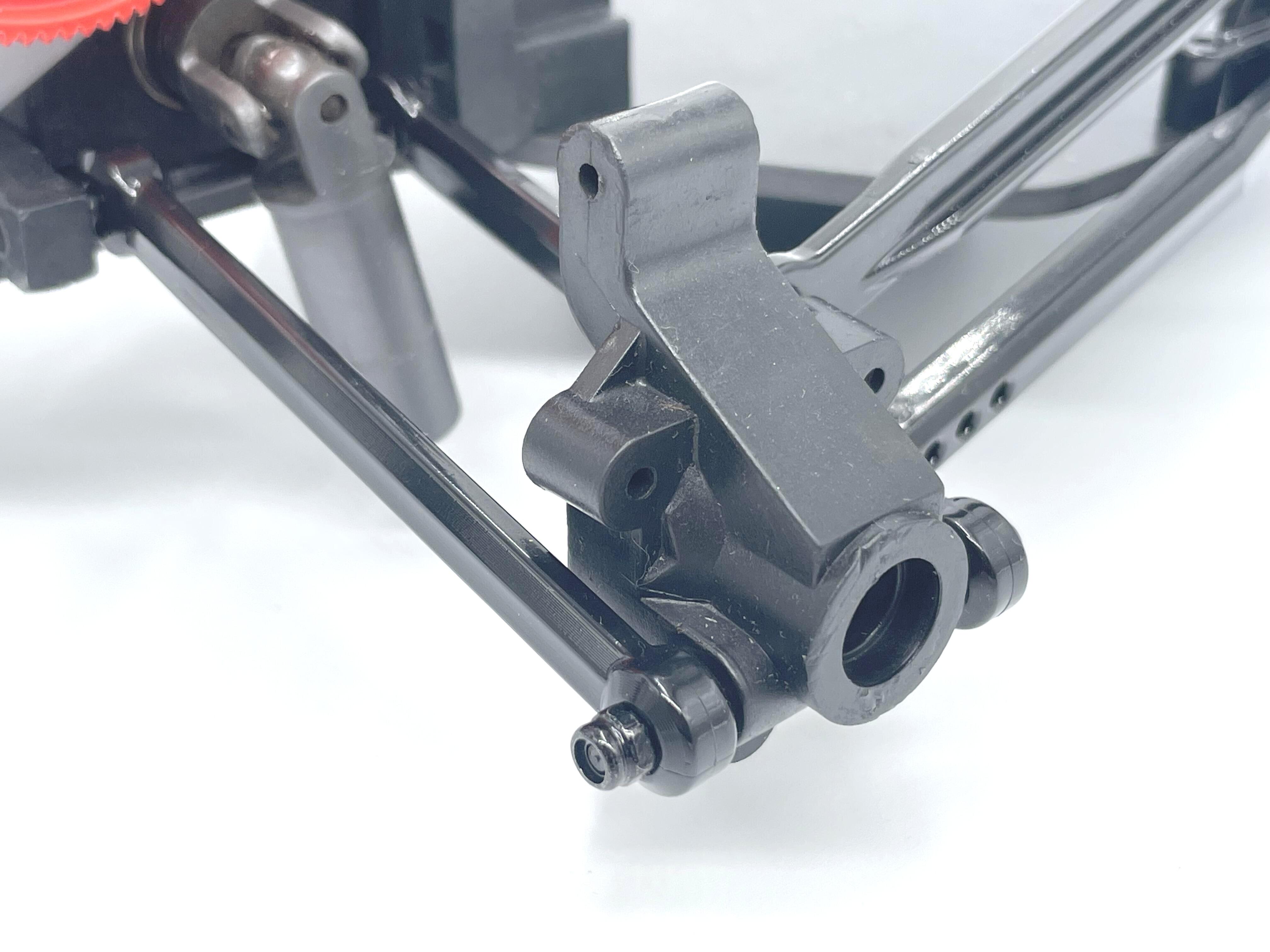

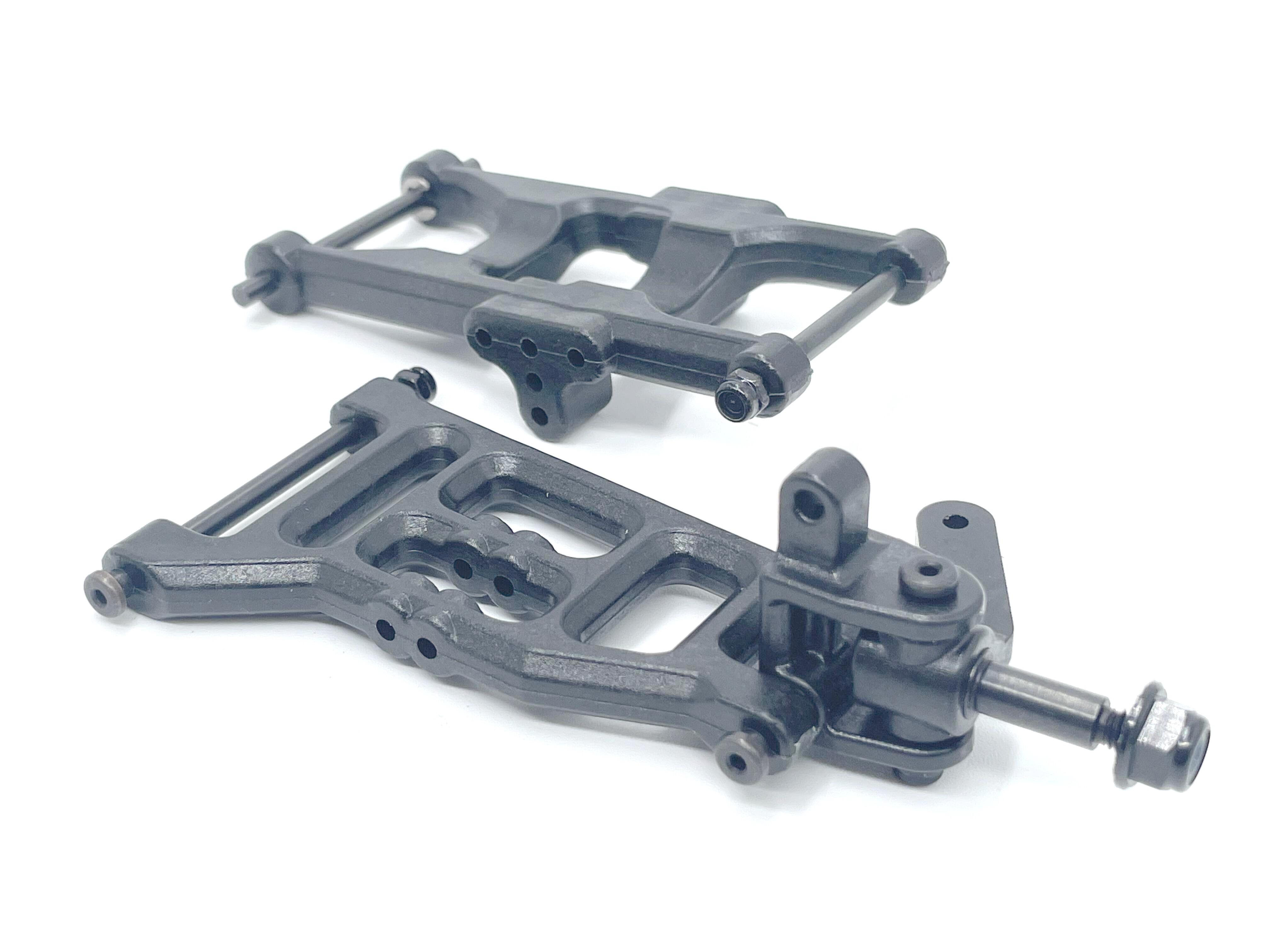

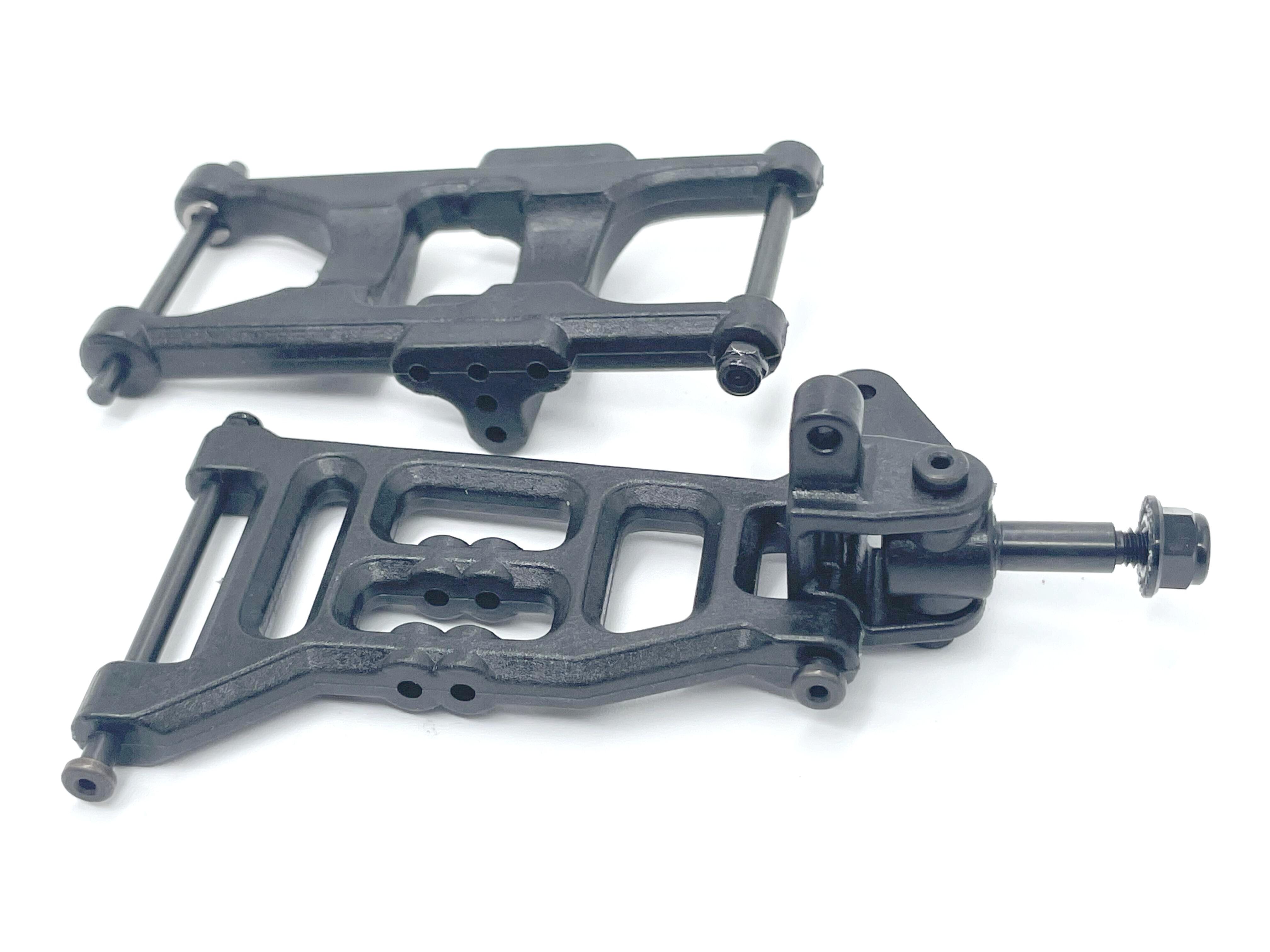

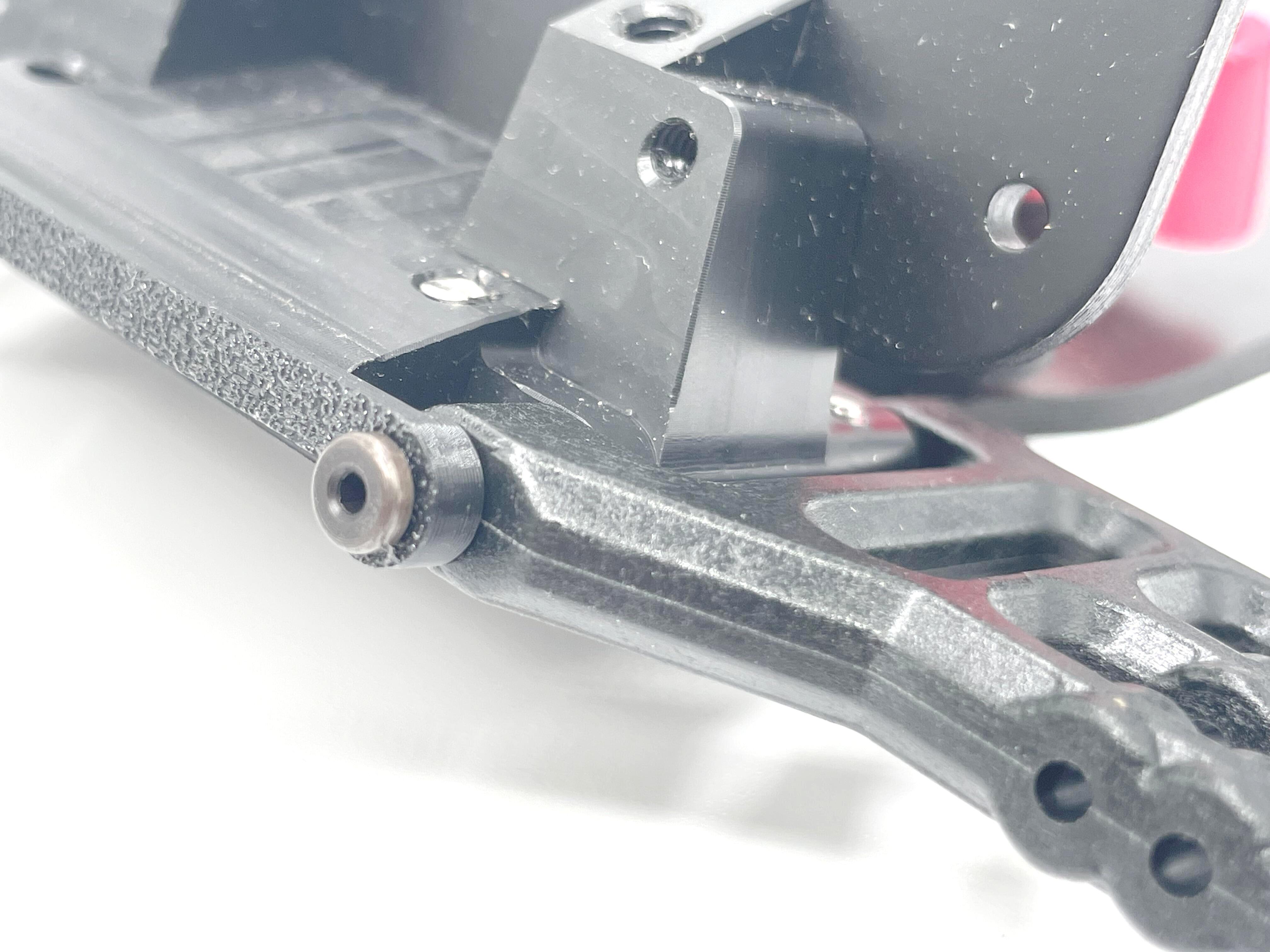

    JC Racing Captured Hinge Pin Set. Upgrade your JRX2 with the JC Racing Captured Hinge Pin Set, designed specifically for the JRX2 family of cars. Say goodbye to frustrating E-clips with this complete set of hinge pins that use secure M2.5 lock nuts for a cleaner, more reliable install.

    Built for performance and ease of maintenance, this hinge pin set is the perfect upgrade for any Losi enthusiast.


    Key Features & specification:

    • Complete hinge pin set for JRX2 family of vehicles
    • Eliminates E-clips with a captured design using M2.5 lock nuts
    • 1.5mm hex head
    • Made from hardened, ground steel for superior durability
    • Polished and finished with a chemical black coating for corrosion resistance and sleek appearance

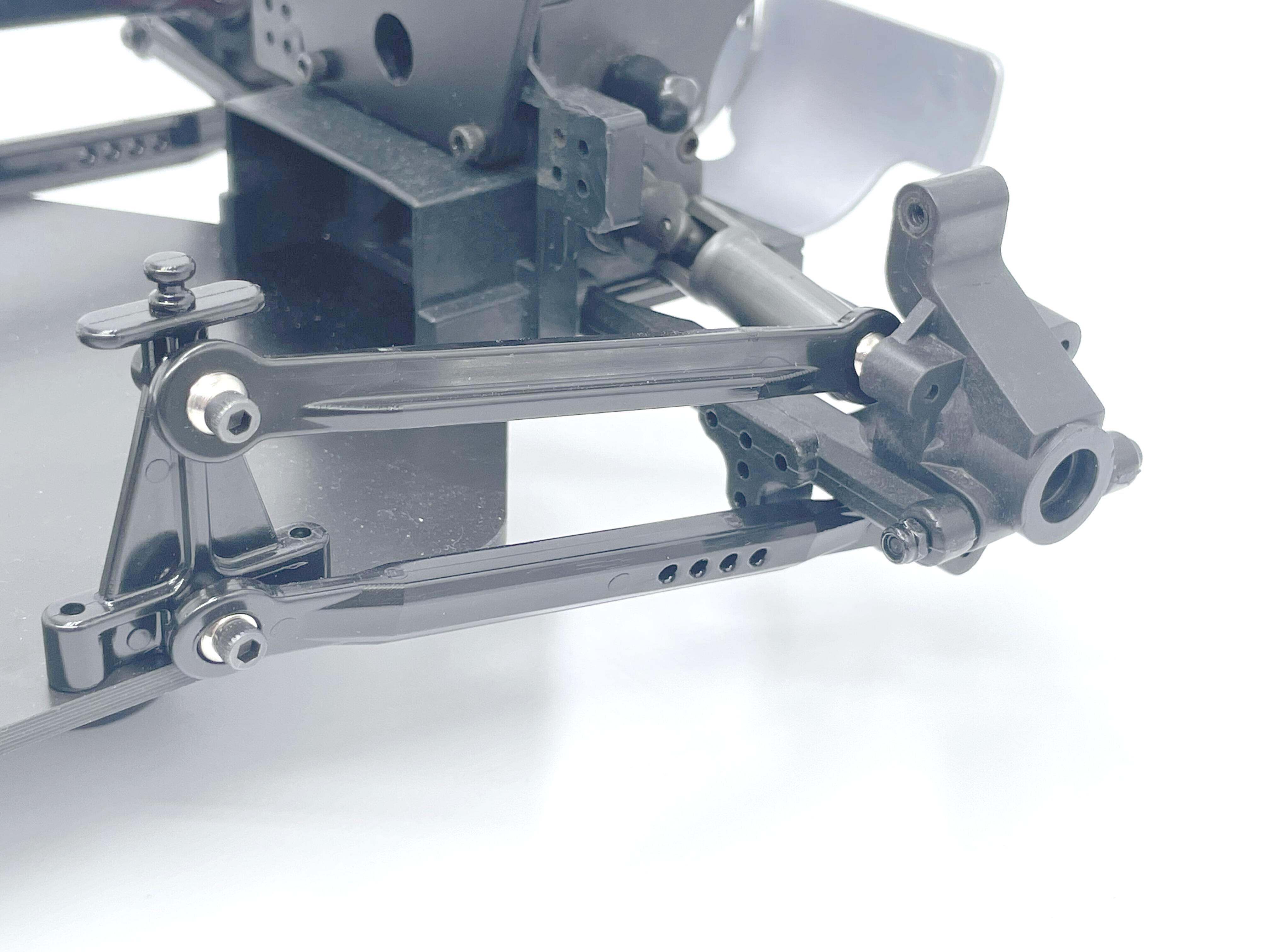

    • Suitable for both 5 Link rear suspension and H arm configurations

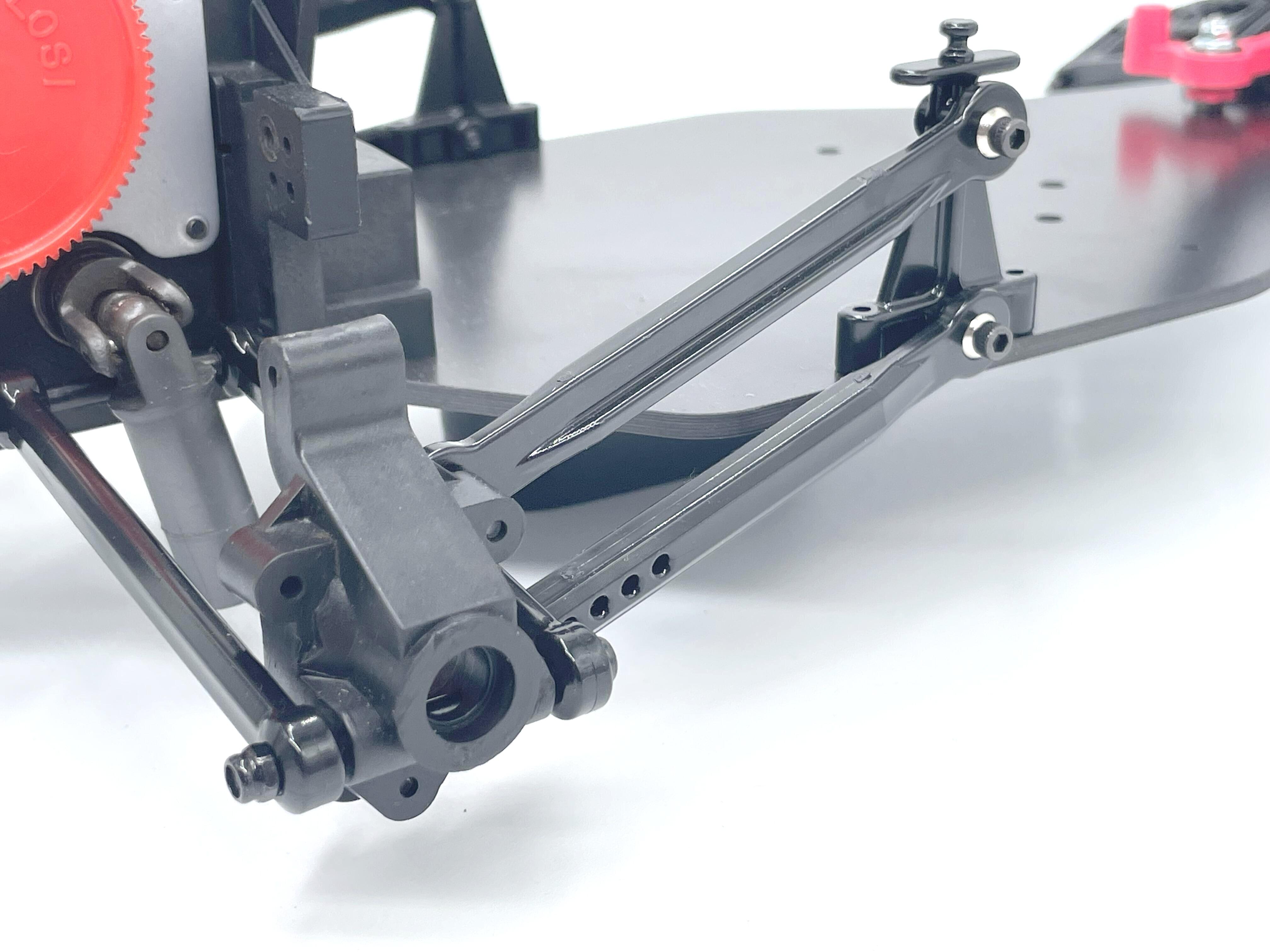

    • Suitable for both original and Pro SE (Swept Back) front end configurations


    Included:
    Measurements are excluding head and thread.

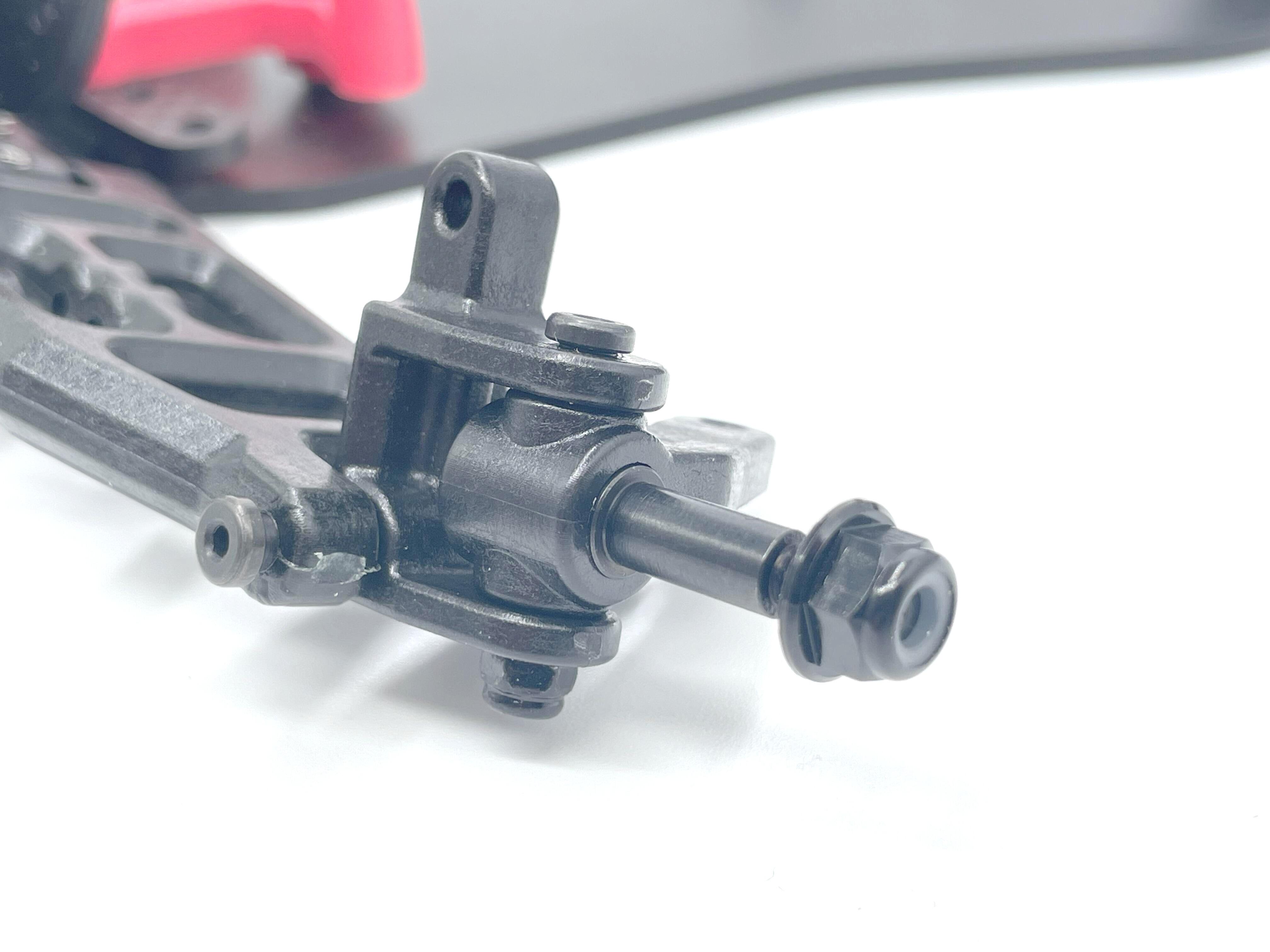

    • (2) 17mm Steering knuckle hinge pin

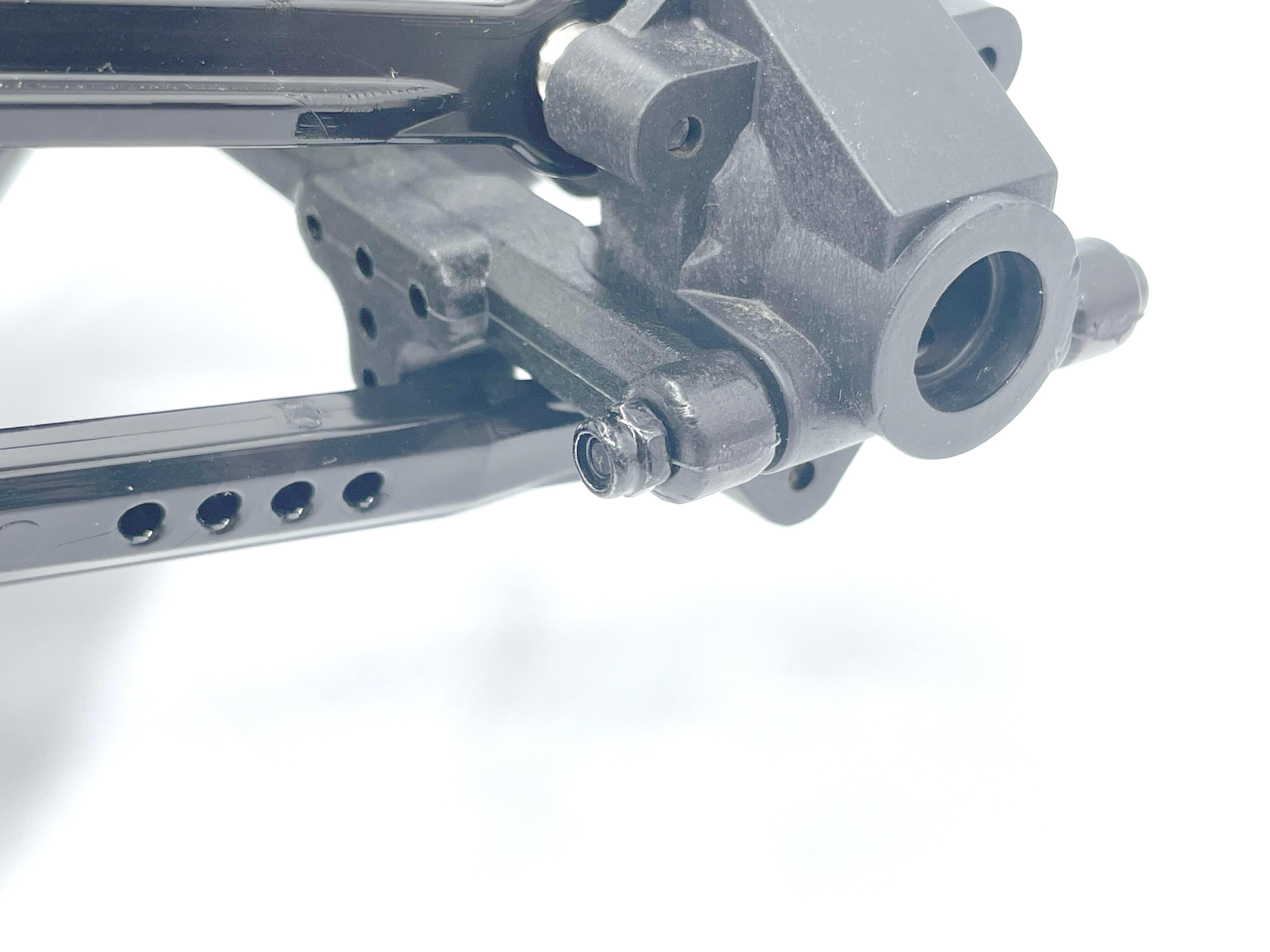

    • (2) 25mm Outer front arm  hinge pin
    • (2) 34.5mm Outer rear arm hinge pin
    • (2) 44.5mm Inner front hinge pin (lengthened to allow for the front brace)
    • (2) 45.5mm Inner rear arm hinge pin (overall length- captured between bulkhead and arm mount)
    • (8) M3 lock nut - Black
    • (4) E-Clips
