RC 10 Upgraded Rear Bulkhead

RC10 Rear Bulkhead

JCS-0102

Part Overview:

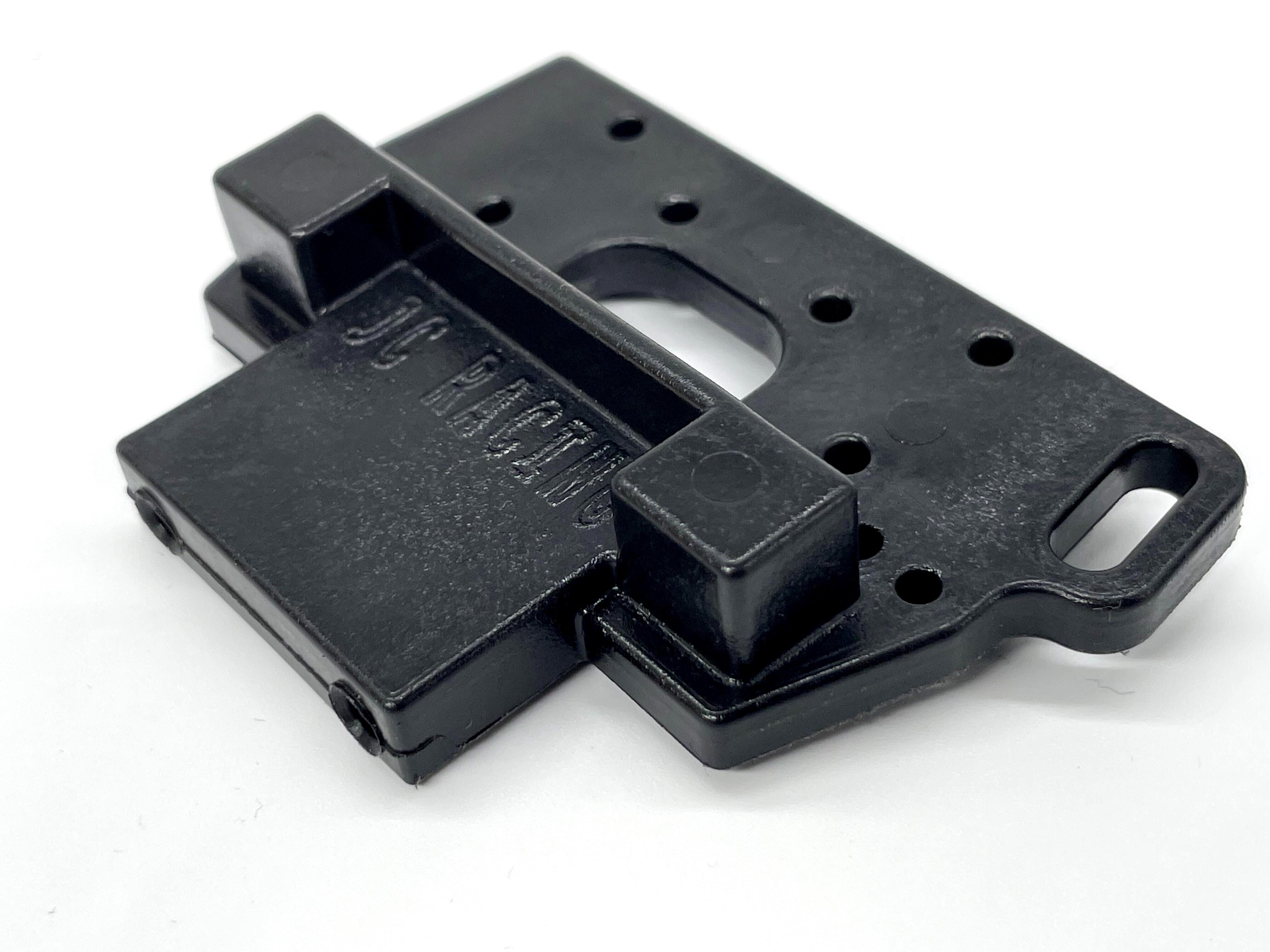

Upgraded replacement injection moulded bulkhead for all variants of the RC10. Targeted towards the race minded individual. This simplified bulkhead design incorporates a neat wire holding slot for all those additional brushless wires, a battery compartment stop for modern lipo batteries and sleek design for easy cleaning.

Key Features and Specification:

• Direct upgraded replacement for the original Team Associated RC10 bulkhead
• Modern styling - including smooth radius edges
• Improved geometry. 2 x longer link positions used back in the day
• Lighter than original. Only 18g
• Injection moulded glass filled nylon, for increased rigidity and durability
• Available colours: Black | Ivory

Fits:

• RC10
• RC10 Team
• RC10 DS
• RC10T

Factory Tip:

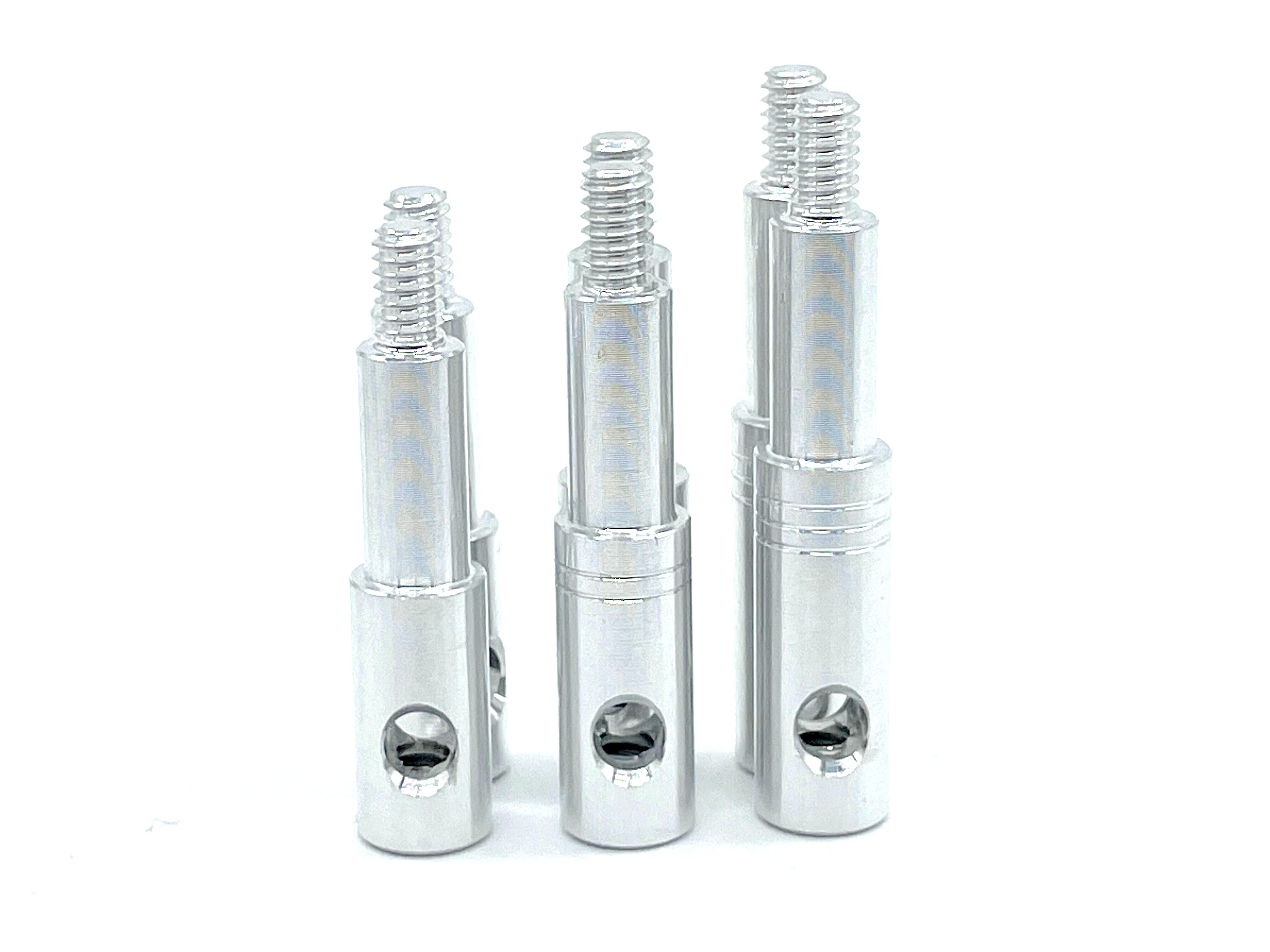

• If the original wing tubes are used, these will need to be cut to the desired height for that custom look and finish.
• We recommended glueing in the wing tubes to stop them pulling out during wing removal.
• Recommended: Tap the 8-32 chassis mount holes with a tap or steel screw before attempting to use the softer aluminium kits screws.
