V3 Rear Bulkhead with Roll Bar Mounting & Wire Tidy Clip

V3 Rear Bulkhead with Roll Bar Mounting & Wire Tidy Clip

#JCS-0076

Part Overview:

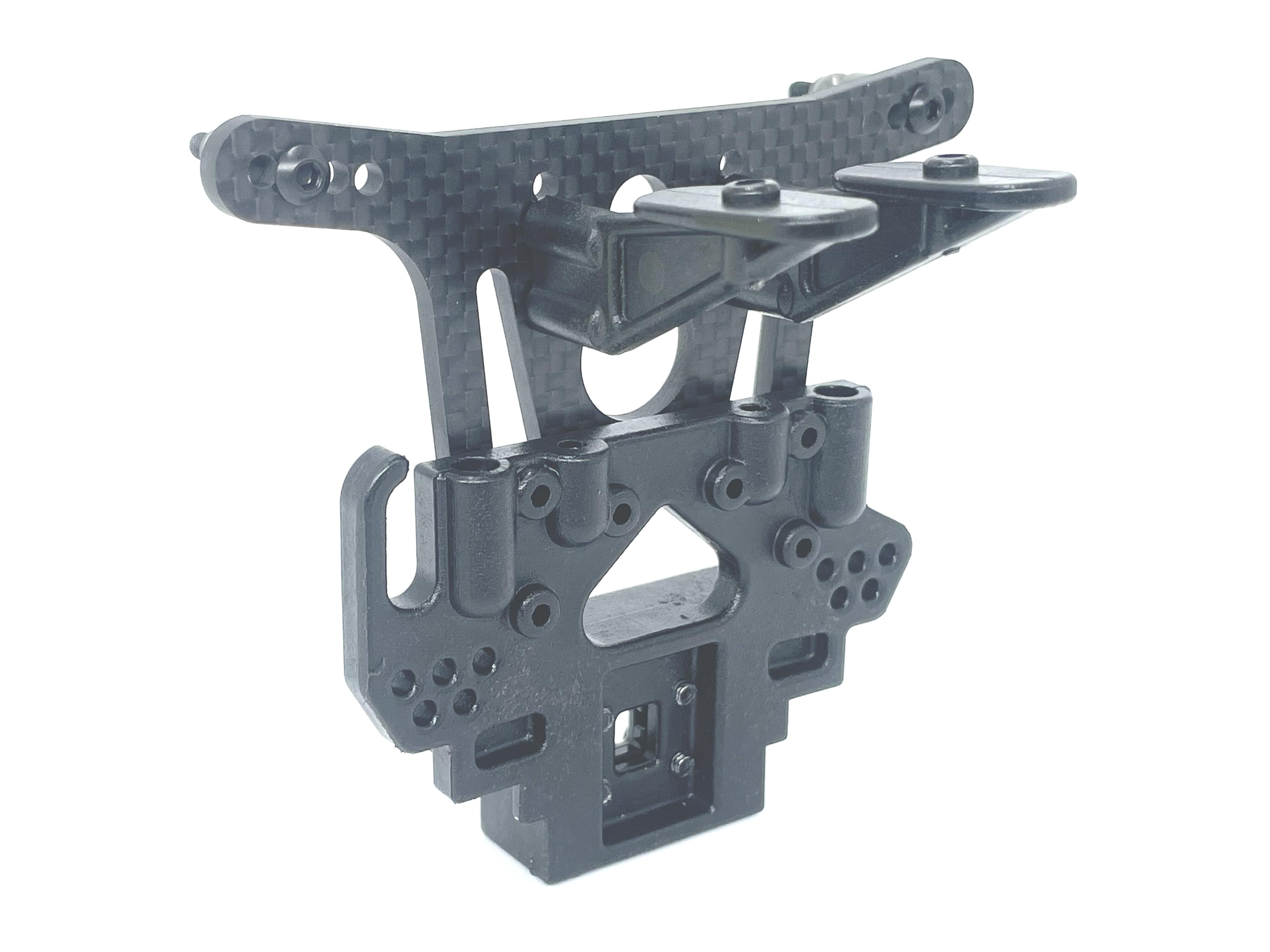

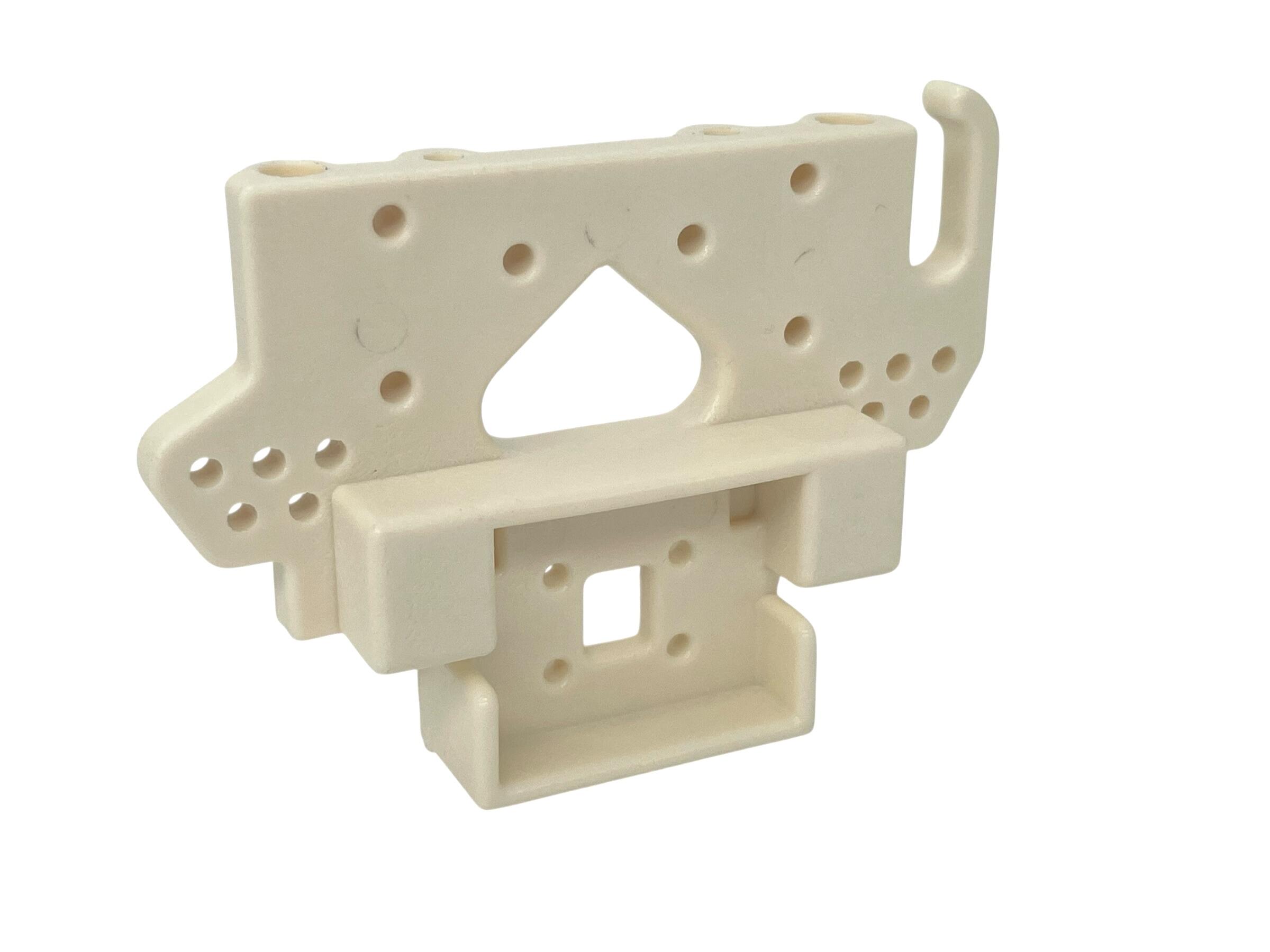

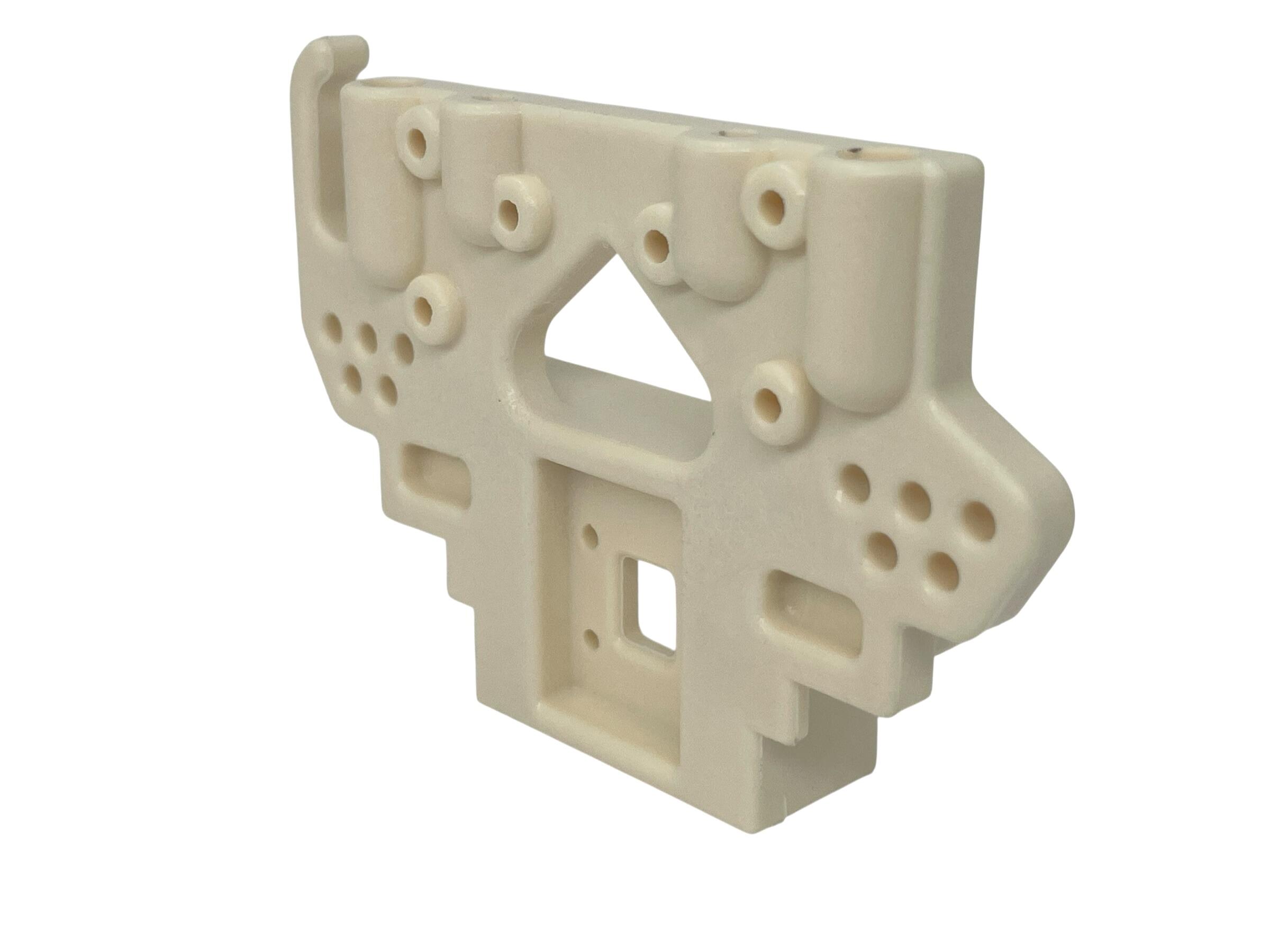

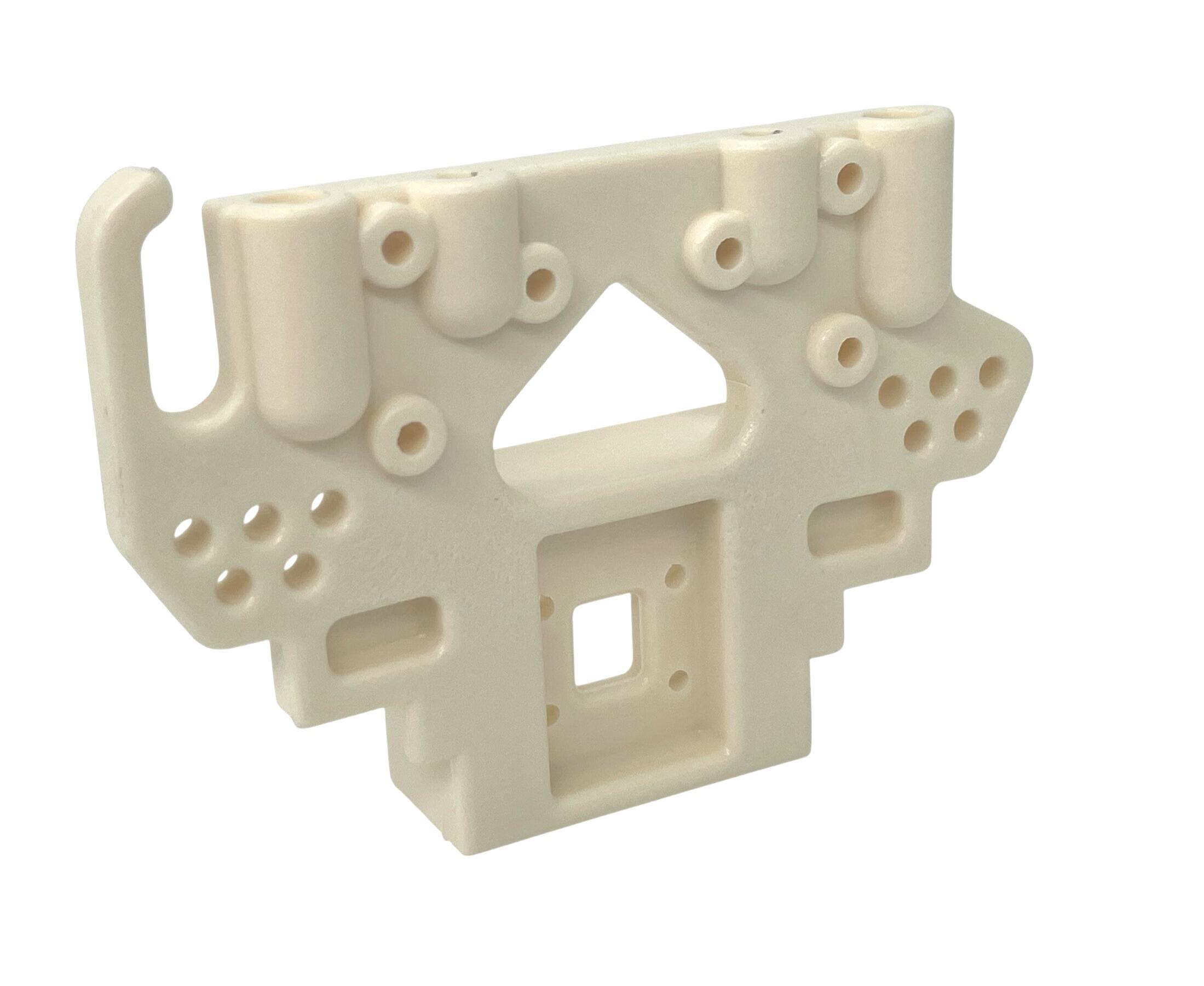

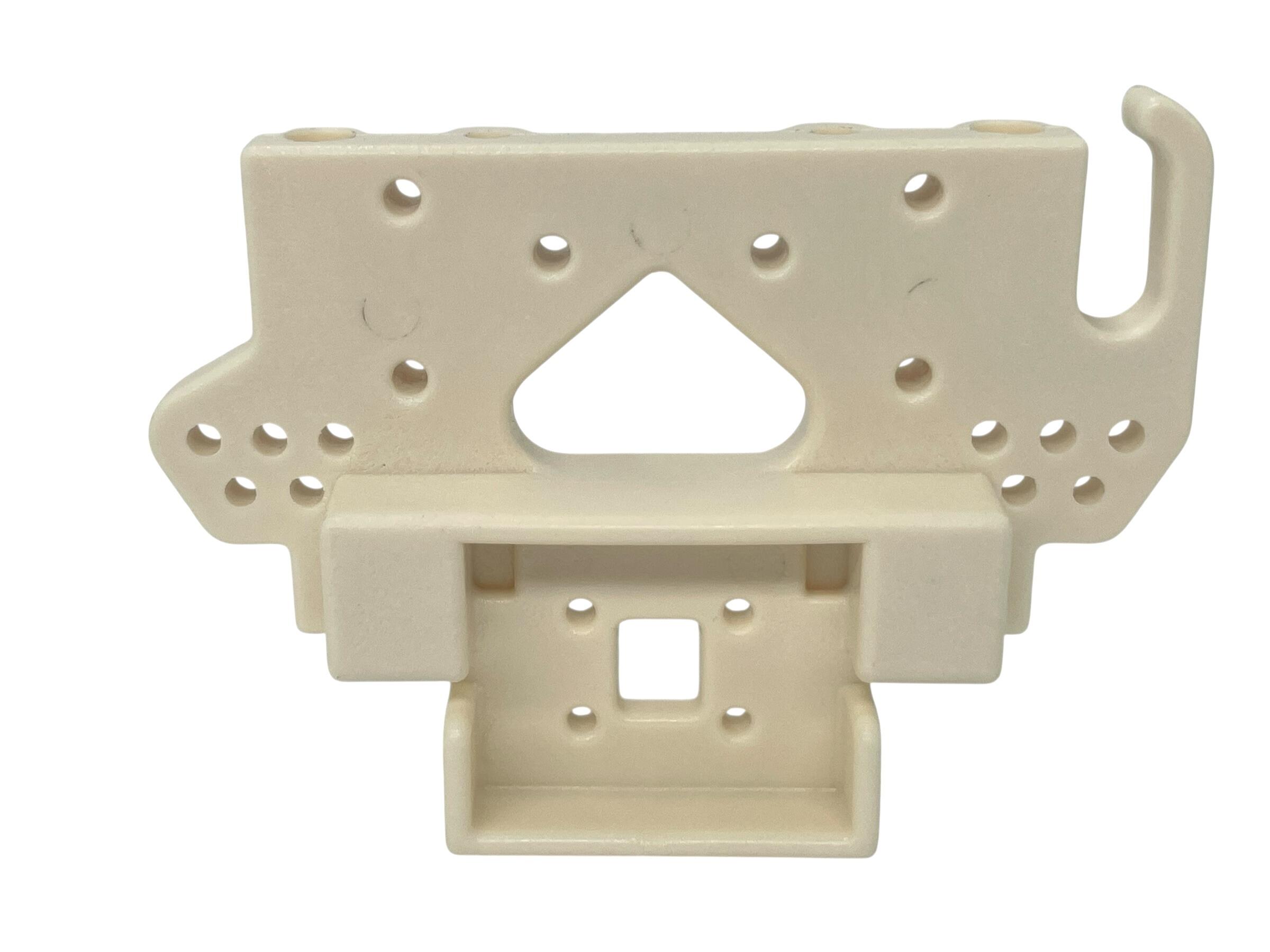

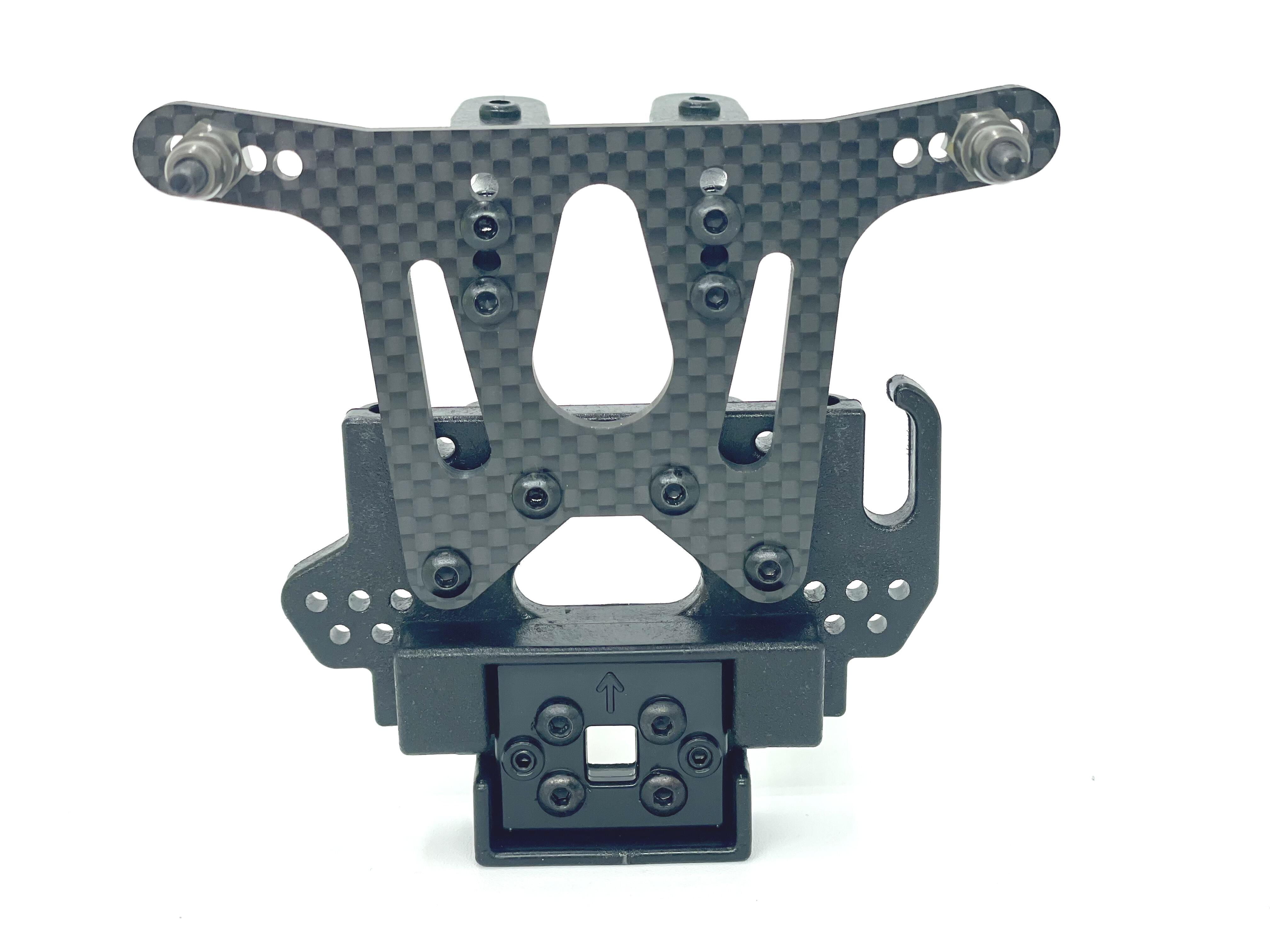

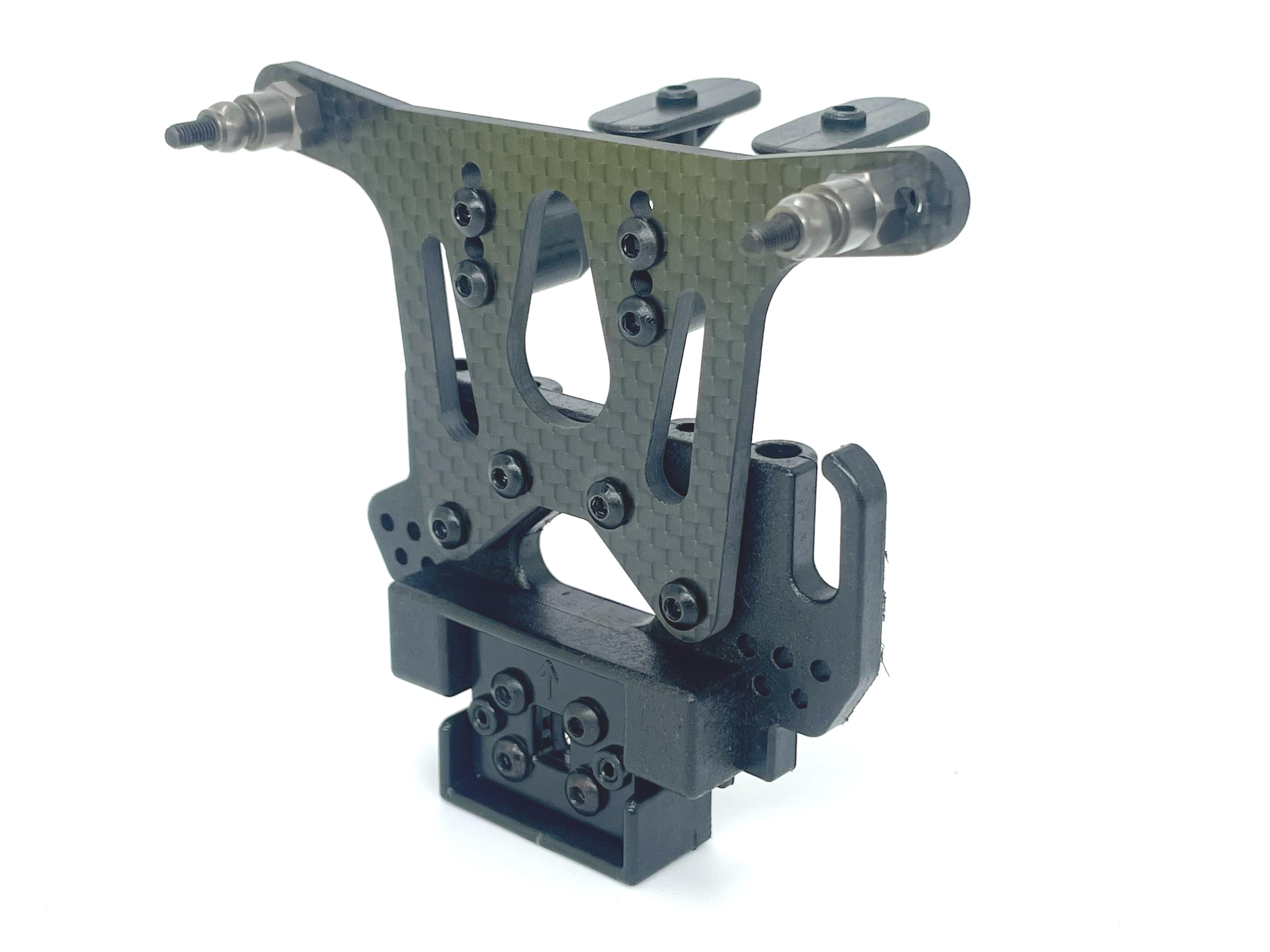

Injection moulded V3 rear bulkhead with Anti roll bar mounting option and wire tidy clip. Targeted towards the race minded individual. This new bulkhead design incorporates a neat wire holding slot for all those additional brushless wires and includes all the holes and clearances needed for mounting a rear anti roll bar kit. Anti-Roll bar set JCS-0151. It doesn't end there - we added more camber link positions for additional tuning and custom builds.

The bulkhead is designed to be used with the JC Racing products battery Cradle JCS-0136, which clamps between the bulkhead and chassis for additional strength and support. However, You can use this bulkhead on any version of the RC10 when using additional washers between the sides of the chassis and bulkhead.

Key Features and Specification:

• Incorporated roll bar mounting feature with additional clearances and mounting holes
• Modern styling - including smooth radius edges
• Best used with the JC Racing products battery cradle JCS-0136 for best results
• Optional Front and rear roll kit- JCS-0151
• Optional link mounting positions
• Unique wire tidy clip for all the modern day brushless wires
• Lighter than original. Only 18g
• Injection moulded glass filled nylon, for increased rigidity and durability
• Available colours: Black | Ivory

Fits: (when using the JC Racing Battery Cradle JCS-0136)

• RC10
• RC10 Team
• RC10 DS
• RC10T
• JC10
• Long Arm RC10

Factory Tip:

• If the original wing tubes are used, these will need to be cut to the desired height for that custom look and finish
• We recommended glueing in the wing tubes to stop them pulling out during wing removal.
• Recommended: Tap the 8-32 chassis mount holes with a tap or steel screw before attempting to use the softer aluminium kits screws
• Bulkhead side screws holes will need to be drilled during assembly for best fit and alignment
